HY10-AC01
Heat Shrink & Marking Tube Machine >

Machine Features :

 1.The equipment adopts infrared annular heating with uniform heat shrinkage and can quickly reach the set temperature.

2. Built-in cooling system enables rapid cooling of heating components after heat shrinkage.

3. Adjustable parameters include process temperature, heat shrinkage time, cooling time, etc.

4. The heat shrinkage chamber can be replaced easily and quickly according to different product requirements, suitable for various sizes of heat shrinkable tubes and product shapes.

5. The device can store dozens of sets of product heat shrinkage parameters for direct recall when needed.

6. The internal automatic cold circulation extends the service life of components and keeps the equipment shell running at low temperature.

7. The touch screen real-timely displays current temperature, heat shrinkage & cooling time, temperature curve, production data and other information.




Specification and Parameter:

Item

Parameter

Model

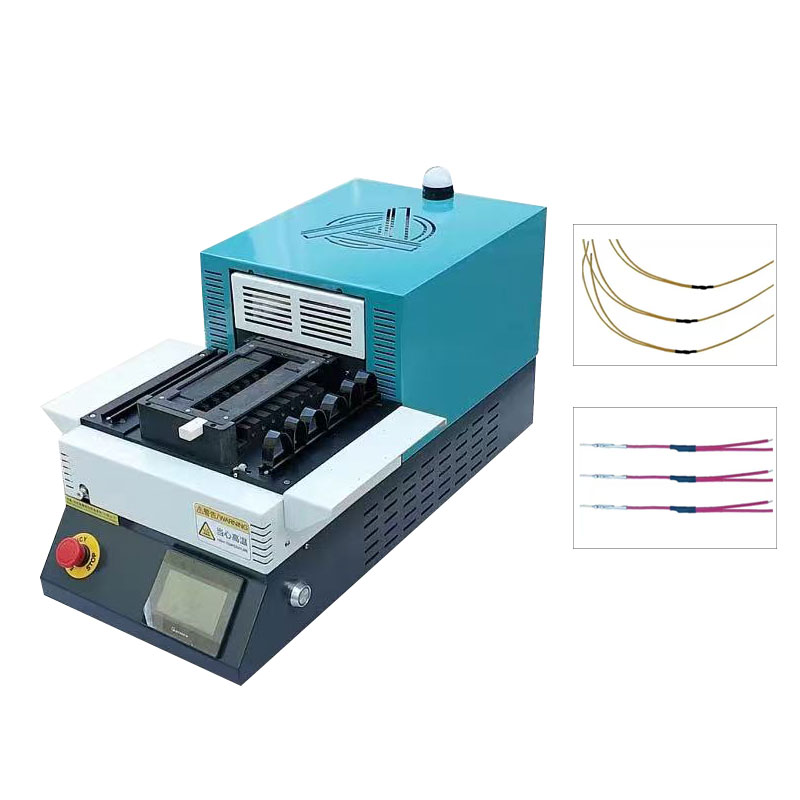

Fully Electric Heat Shrink Tubing Machine HY10-AC01

Mechanical Dimensions

L530×W500×H400 mm

Mechanical Weight

35 kg

Mechanical Power

2.0 KW

Heating Temperature

0~550 ℃

Heating Method

Resistance Wire Heating

Heat Shrink Diameter

0~50 mm

Heat Shrink Length

0~100 mm

Air Pressure

0.6 Mpa

Power Supply

AC 220V 50HZ
