Name

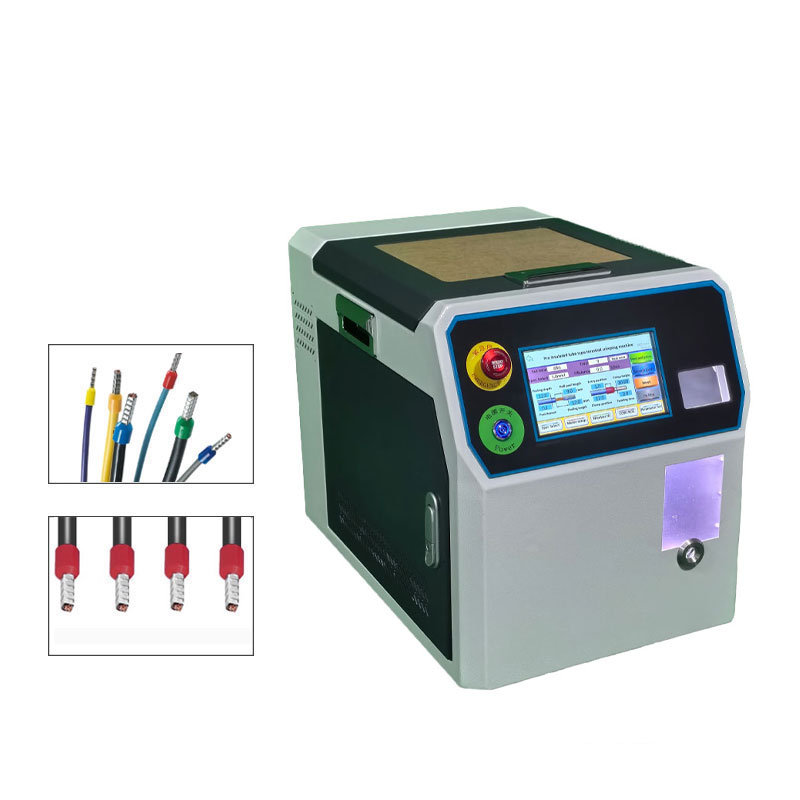

Pre-insulated Bootlace Terminal Servo Crimping Machine

Model

HY48-AP16

Control Method

Integrated electrical control via man-machine interface, electrical control, primarily electric drive with pneumatic coordination.

Operation Mode

Automatic trigger by wire feeding, manual operation trigger; foot pedal start switch can be installed.

Wire Gauge

Suitable for most wires such as RV stranded wires in 10 sizes from 0.3 to 16mm² (materials and tooling must be provided for wires smaller than 0.5mm²).

Terminal Specifications

0.3(custom) to 16mm²; terminal insulator length ≤11mm, conductor length ≤20mm.

Stripping & Insertion

Stripping length: 6-30mm; insertion position controlled by motor adjustment, replacing original mechanical limit adjustment.

Stripping Method

Rotary stripping, parallel stripping, rotary twisting; direction can be forward or reverse.

Terminal Feeding

Vibratory bowl feeder; one bowl compatible with 10 types of terminals with simple adjustment.

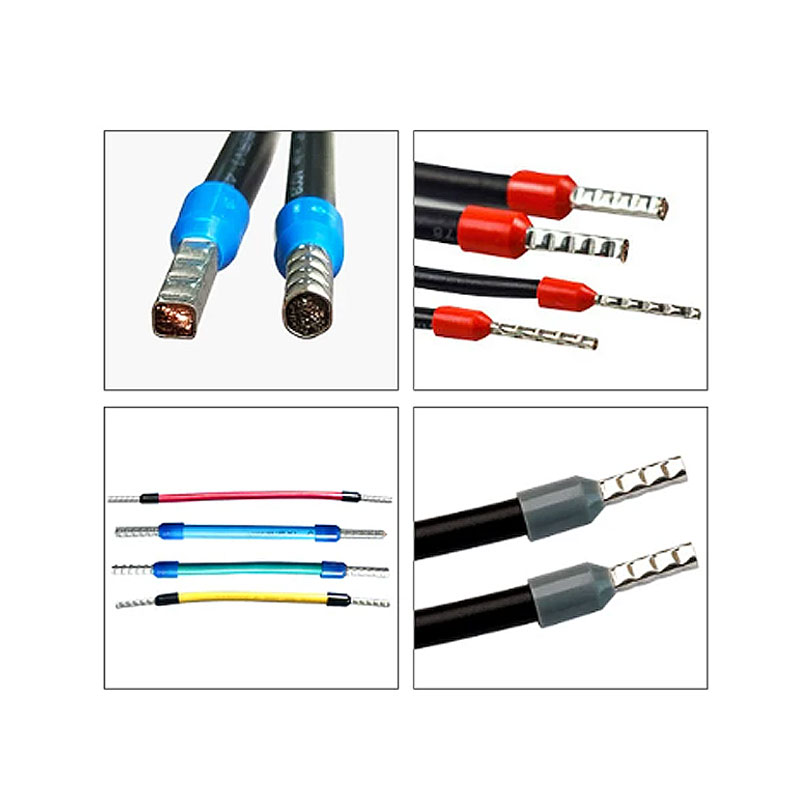

Crimping Shape

Square quadrilateral crimping, servo motor-driven crimping; crimping height is infinitely adjustable; custom crimping dies available for special shapes.

Product Changeover

Manual replacement of related fixtures, adjustment of vibratory bowl, and recall of stored parameters from the control system.

Production Capacity

Approx. 3.2s/terminal (machine cycle, subject to wire variations); approx. 4s/terminal in manual operation (depending on wire type).

Inspection & Alarm

Terminal presence detection and other operational monitoring functions.

Power Supply

AC220V/50Hz (single-phase, 10A); internal power supplies DC24V, DC30V, AC30V; total power 1500W.

Air Supply

0.5-0.6MPa (use stable, clean, dry air supply).

Working Environment

Temperature: 0~35°C (ambient around the machine); Humidity: 30~80% RH (non-condensing).

Dimensions & Weight

W360mm (width) × L520mm (depth) × H425mm (height) (excluding protrusions); Weight approx. 62kg.
