Coaxial Cable Stripping Machine
Other Small Equipment >

Equipment Features:

·  Fully electric design with computer-controlled parameters for high precision and easy setup.

·  Ultra-precise stripping positioning with one-touch activation for safe operation.

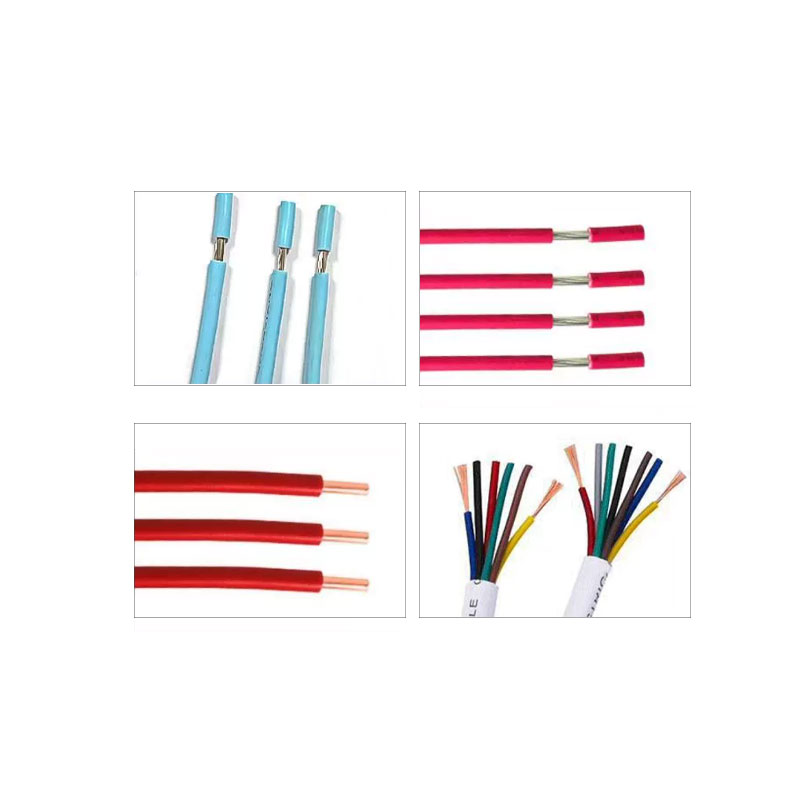

·  Supports multiple modes: half-strip, full-strip, double-layer & multi-layer stripping.

·  Special loop processing mode for sheathed cables with varying inner cores, boosting efficiency.

·  90° V-shaped blade design for universal use without frequent blade changes.

·  Translation mechanism for consistent center height across different wire diameters.

·  Stores up to 20 parameter sets, saving setup time and reducing material waste.




Video

Specification and Parameter:

Mode

HY13-AXJL

Overall Dimensions

495 × 138 × 260 mm

Power Supply

AC 220V 50Hz

Stripping Length Range

0.1mm – 45mm

Minimum Stripping Depth

0.01mm

Maximum Stripping Layers

4 layers

Gripping Jaws

2 pieces

Working Environment

0–50℃, Appropriate Humidity

Program Storage Capacity

1–100 Wire Processing Programs

Display Type

Color Touchscreen

Activation Method

Foot Pedal / Manual / Push Rod

Power

300W

Stripping Diameter Range

Φ0.5mm – Φ7mm

Weight

13.8kg

Drive System

Motor / Ball Screw Drive

Blades

2 pieces

Wire Clamping Device

Automatic Centering, Program-Controlled
