Specification and Parameter：

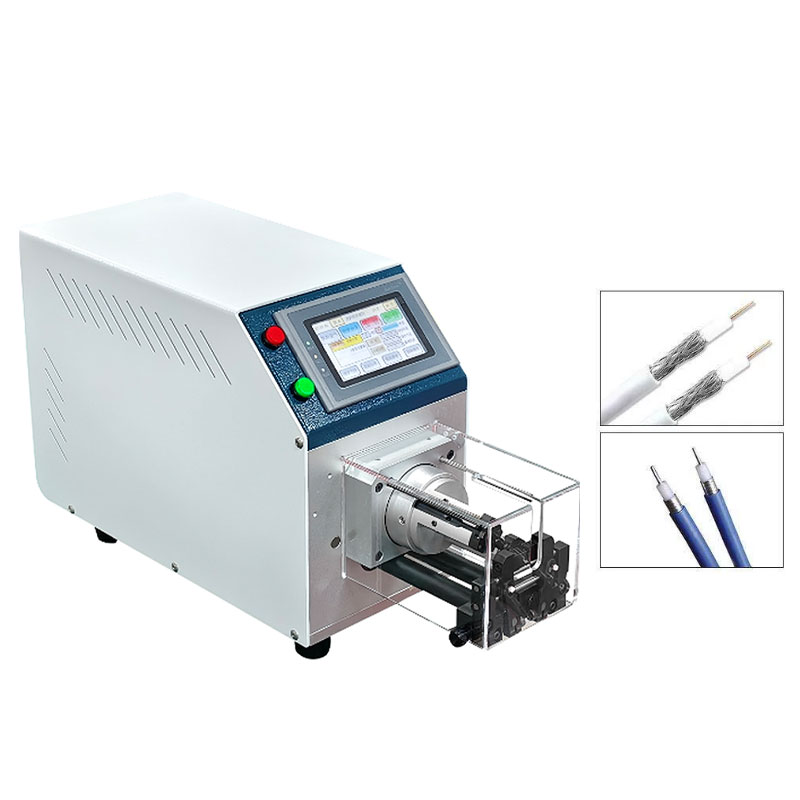

Mode | HY13-A7806A |

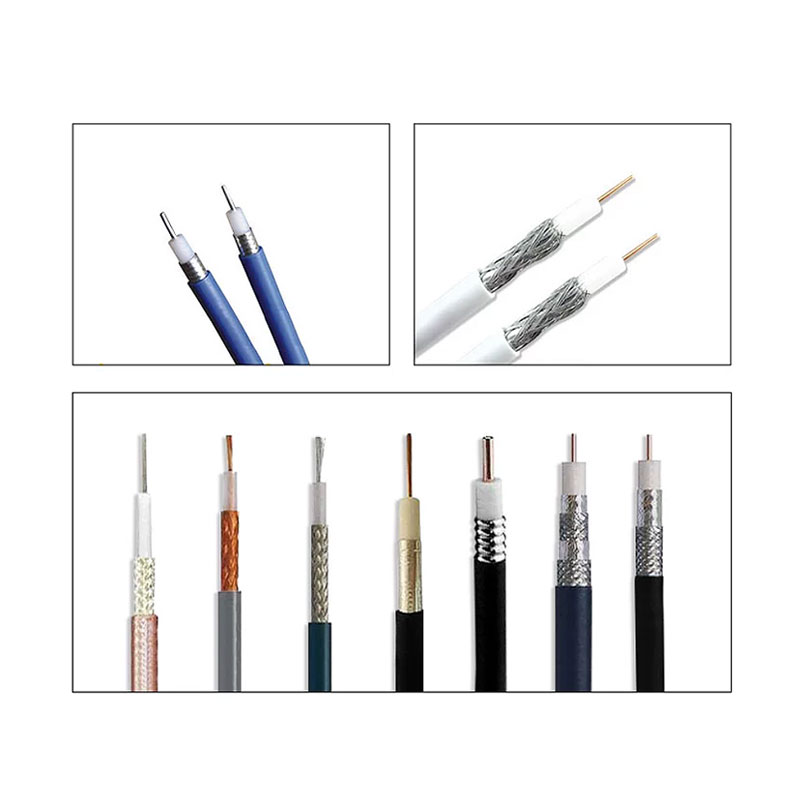

Applicable Wire Types | Coaxial Cables, High-Temperature Wires, 141 Base Station Cables, Automotive Wires |
Maximum Stripping Length | 0–48 mm |
Stripping Length Setting Unit | 0.01 mm |
Wire Diameter Range | 0.8–7 mm |
Cutting Depth Setting Unit | 0.01 mm |
Maximum Stripping Layers | 9 layers |
Display Type | Touch Screen |
Display Interface | Bilingual (English/Chinese) LCD, 95 mm × 50 mm |
Power Supply | AC 220V/110V 50/60 Hz |
Power | 400 W |
Overall Dimensions | 600 × 185 × 280 mm |
Weight | 27 kg |
Drive System | Motor + Ball Screw Drive |
Blade Material | Imported Tungsten Steel |
Working Environment | -5–45°C, Dry and Vibration-Free Work Surface |
Program Storage Capacity | 99 Sets of Machining Parameters |
Production Efficiency | 750–1150 Pcs/h (depending on wire type) |
Equipment Features：
· Realizes one-time multi-layer stripping for coaxial cables, new energy cables and power cables.
· High precision with 0.01mm fine adjustment, no damage to inner core and insulation.
· Supports up to 9 layers stripping, suitable for complex wire harness processing.
· Stores 99 sets of parameter programs, quick switch for different wire types.
· Equipped with imported die steel blades, wear-resistant and long service life.
· Motor and ball screw drive, stable running and high processing consistency.
· Chinese and English touch screen, simple operation and easy parameter setting.
· Foot pedal and manual dual control, flexible feeding and high working efficiency.
