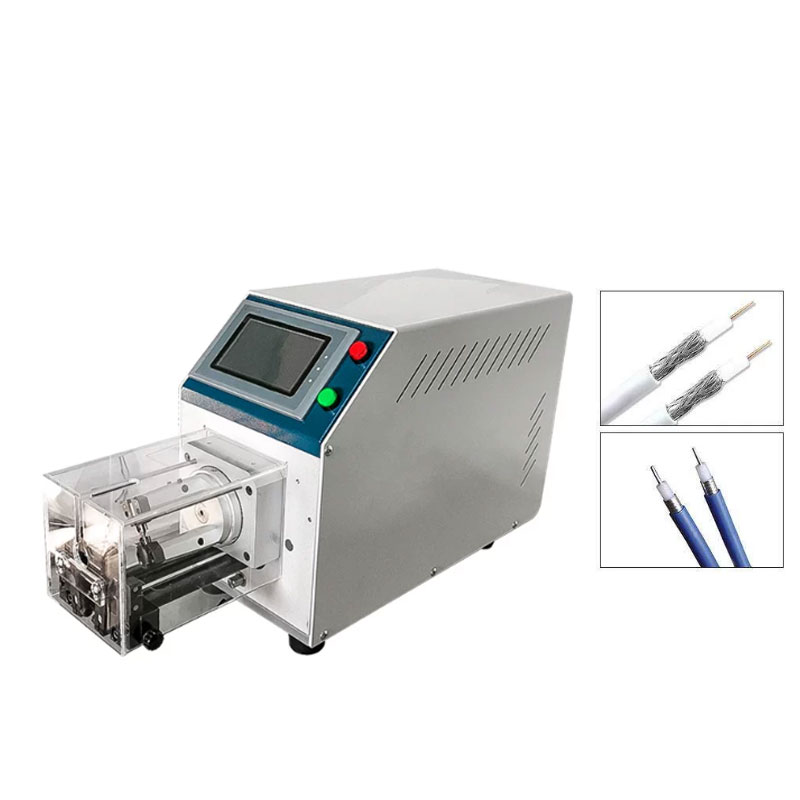

Coaxial Cable Stripping Machine
Other Small Equipment >

Equipment Features:

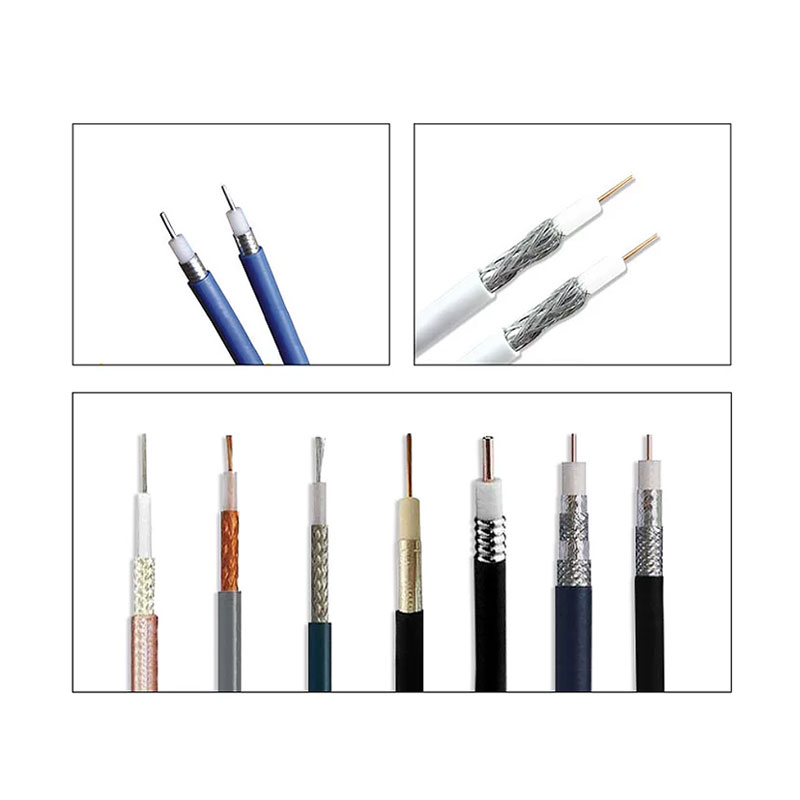

·  Realizes one-time multi-layer stripping for coaxial cables, new energy cables and power cables.

·  High precision with 0.01mm fine adjustment, no damage to inner core and insulation.

·  Supports up to 9 layers stripping, suitable for complex wire harness processing.

·  Stores 99 sets of parameter programs, quick switch for different wire types.

·  Equipped with imported die steel blades, wear-resistant and long service life.

·  Motor and ball screw drive, stable running and high processing consistency.

·  Chinese and English touch screen, simple operation and easy parameter setting.

·  Foot pedal and manual dual control, flexible feeding and high working efficiency.




Video

Specification and Parameter:

Mode

HY13-A68606D

Overall Dimensions

185 × 600 × 280 mm

Power Supply

AC 220V 50Hz

Stripping Length Range

0.1mm - 65mm

Minimum Stripping Depth

0.01mm

Maximum Stripping Layers

9 layers

Centering Blades

4 pieces

Working Environment

0-50℃, Appropriate Humidity

Display Type

Color Touchscreen

Activation Method

Foot Pedal / Manual

Power

400W

Stripping Diameter Range

Φ1mm - Φ9.5mm

Weight

30kg

Drive System

Motor / Ball Screw Drive
