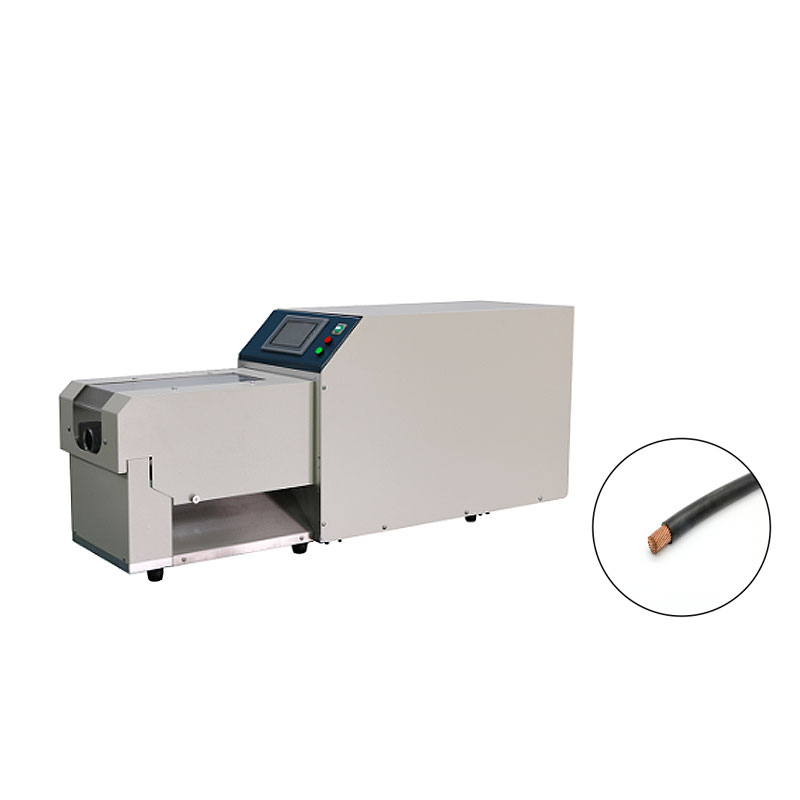

Coaxial Cable Stripping Machine

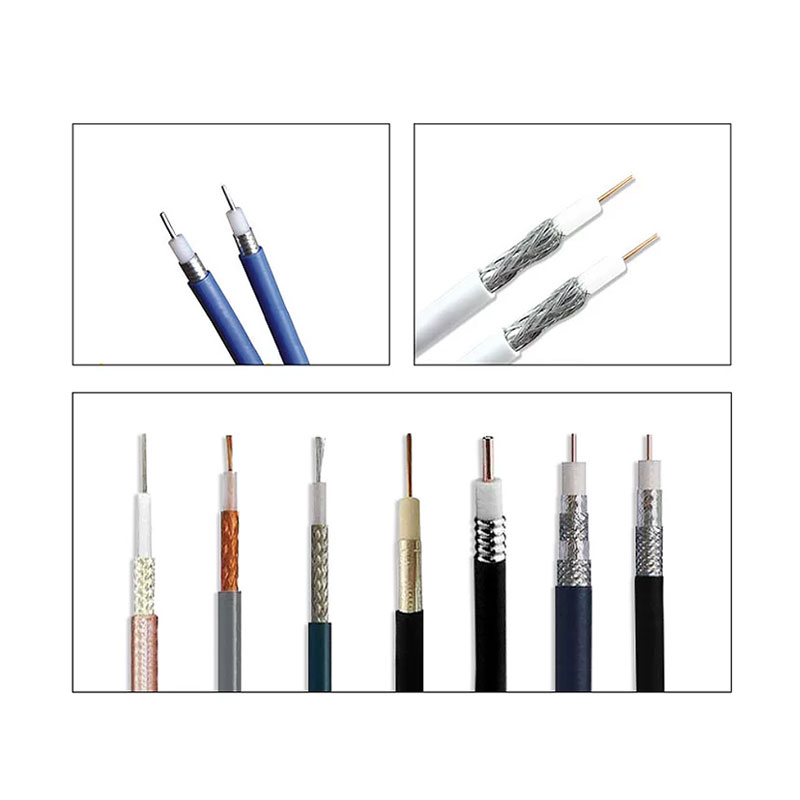

· Realizes one-time multi-layer stripping for coaxial cables, new energy cables and power cables.

· High precision with 0.01mm fine adjustment, no damage to inner core and insulation.

· Supports up to 9 layers stripping, suitable for complex wire harness processing.

· Stores 99 sets of parameter programs, quick switch for different wire types.

· Equipped with imported die steel blades, wear-resistant and long service life.

· Motor and ball screw drive, stable running and high processing consistency.

· Chinese and English touch screen, simple operation and easy parameter setting.

Specification and Parameter：

Mode	HY13-A3520
Display Type	Touch Screen
Applicable Wire Types	New Energy Cables, Coaxial Cables, Power Cables, etc.
Cutting Depth Setting Unit	0.01 mm
Stripping Length Setting Unit	0.01 mm
Wire Diameter Range	3–30 mm
Stripping Length Range	0–200 mm
Maximum Stripping Layers	9 layers
Display Interface	Bilingual (English/Chinese) LCD, 95 mm × 50 mm
Power Supply	AC 220V/110V 50/60 Hz
Power	Approx. 2000 W
Weight	145 kg
Overall Dimensions	1180 × 335 × 500 mm
Drive System	Motor + Ball Screw Drive
Blade Material	Imported Die Steel
Number of Blades	4 Rotary Blades
Working Environment	-5–45°C, Dry and Vibration-Free Work Surface
Program Storage Capacity	99 Sets of Machining Parameters
