Features Description:

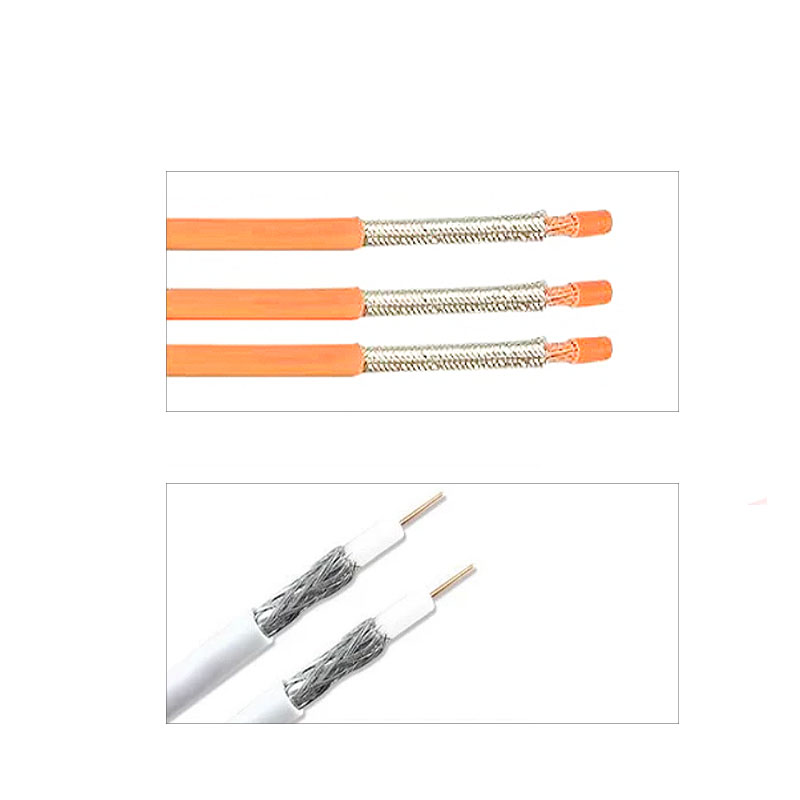

This model is specially designed for stripping extra-thick new energy cables with high requirements for clean stripping cuts. After processing with this machine, the cable stripping edges are neat and the inner conductors remain undamaged.
Parameter | Specification |
Model | HY13-A3030 |
Operation Interface | 7-inch touchscreen |
Max. Stripping Length | 0–300 mm |
Cutting Wire Diameter Range | 3–30 mm |
Stripping Length Setting Unit | 0.01 mm |
Cutting Depth Setting Unit | 0.01 mm |
Max. Stripping Layers | 9 layers |
Blade Quantity | 4 pcs |
Electrical Configuration | Full-servo motors |
Activation Mode | Foot pedal or button start |
Program Storage Capacity | 100 programs |
Working Power Supply | AC 220V/110V, 50/60 Hz |
Power Rating | Approx. 2 kW |
Overall Dimensions | 1375 × 475 × 1365 mm |
Weight | 240 kg |
Production Efficiency | 200–500 pcs/h (depending on wire type) |
MES System Compatibility | Reserved physical interface for MES system connection |
