Coaxial Cable Stripping Machine HY13-A2520-HENYING INTELLIGENT EQUIPMENT (SHENZHEN) CO. LTD.

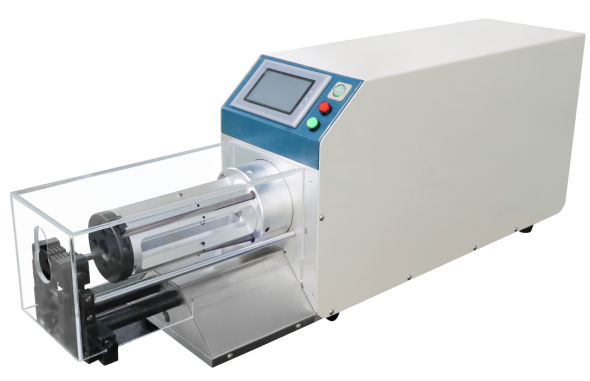

Coaxial Cable Stripping Machine HY13-A2520

Equipment Features：

· Realizes one-time multi-layer stripping for coaxial cables, new energy cables and power cables.

· High precision with 0.01mm fine adjustment, no damage to inner core and insulation.

Technical Parameters：

Parameter	Specification
Model	HY13-A2520
Max Stripping Length	0–200mm
Applicable Wire Diameter Range	2–23mm
Stripping Length Setting Unit	0.01mm
Cutting Depth Setting Unit	0.01mm
Max Stripping Layers	9 layers
Number of Blades	4
Power Supply	AC 220V/110V, 50/60Hz
Power Rating	600W
Dimensions (L×W×H)	1000 × 225 × 400mm
Weight	56kg
Production Efficiency	300–800 pcs/hour (varies by wire type)
