Technical Parameters：
| Parameter | Specification |
|---|---|

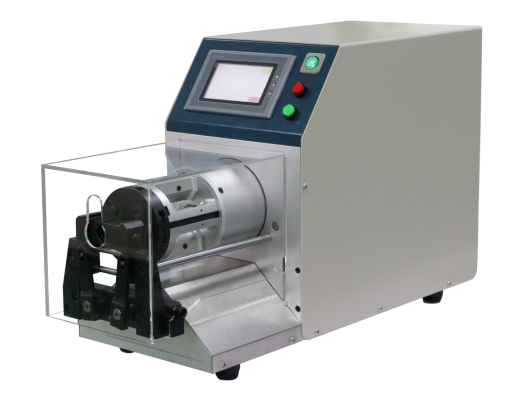

| Model | HY13-A 2310 |
| Display Mode | Touchscreen |

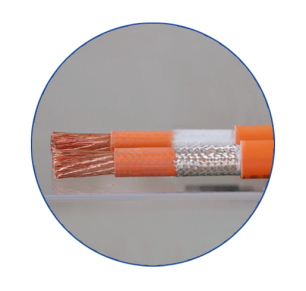

| Applicable Wire Types | Coaxial cables, corrugated tube cables, new energy cables |
| Display Interface | Bilingual (Chinese/English) LCD, 95mm × 50mm |
| Power Supply | AC 220V/110V, 50/60Hz |
| Power Rating | 600W |
| Stripping Length Range | 0–100mm |
| Dimensions (L×W×H) | 680 × 240 × 400mm |
| Stripping Length Setting Unit | 0.01mm |
| Weight | 45.5kg |
| Applicable Wire Diameter Range | 2–23mm |
| Drive System | Motor + ball screw drive |
| Cutting Depth Setting Unit | 0.01mm |
| Blade Material | Imported die steel / imported tungsten steel |
| Blade Configuration | 4 rotary blades |
| Maximum Stripping Layers | 9 layers |
| Memory Capacity | 99 sets of processing parameters |
| Production Efficiency | 400–800 pcs/hour (varies by wire type) |
