Functional Introduc：

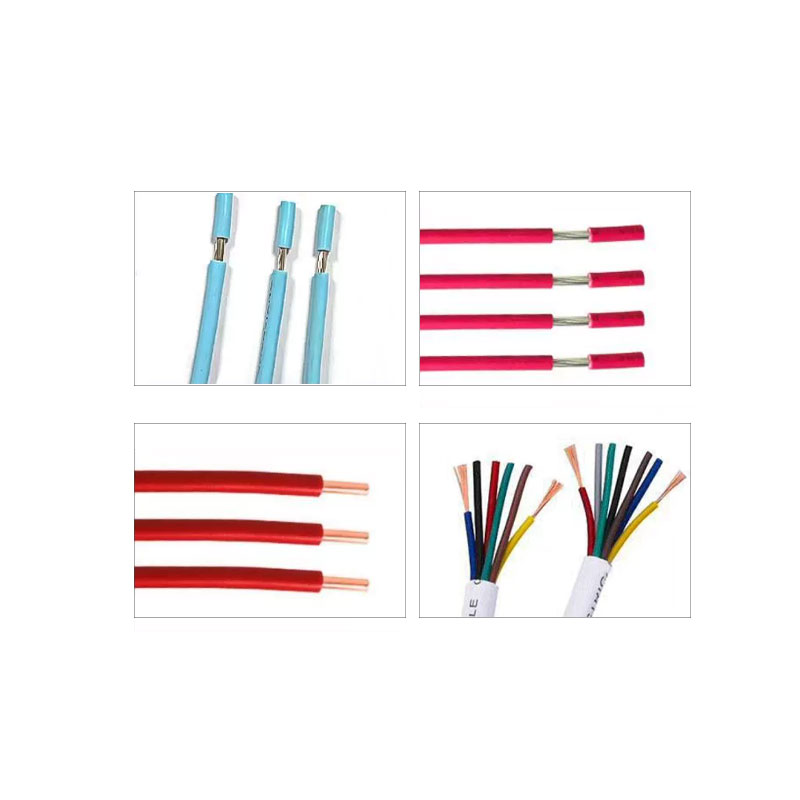

Designed for the communication and medical industries, this machine is ideal for stripping ultra-fine and flexible coaxial wire harnesses, delivering clean, precise stripping without damaging conductors.
It features a user-friendly HMI for simple, intuitive operation, supporting up to 6 layers of stripping and storing up to 99 sets of processing parameters.
The rotary cutting head, with 3 rotating blades and 3 wire guard blades, along with a compact and sophisticated structure, greatly enhances stripping stability and extends blade service life.
The machine automatically sucks and collects insulation waste. With its compact design, it can also be integrated into automated production lines.
Technical Parameters：
| Parameter | Specification |
|---|---|
| Model | HY13-A1208 |
| Applicable Wires | Coaxial wires, fine medical wires, etc. |
| Max Stripping Length | 0-20 mm |
| Stripping Length Setting Unit | 0.01 mm |
| Cutting Wire Diameter Range | 0.4-1.8 mm |
| Cutting Depth Setting Unit | 0.01 mm |
| Max Stripping Layers | 6 layers |
| Display Type | Touch Screen |
| Display Interface | Bilingual (Chinese/English) LCD, 85mm×50mm |
| Power Supply | AC220V/110V, 50/60Hz |
| Power Consumption | 300W |
| Number of Blades | 3 pcs |
| Number of Wire Guards | 3 pcs |
| External Dimensions (L×W×H) | 310×160×280 mm |
| Weight | 18 kg |
| Drive Mode | Lead screw motor drive |
| Blade Material | Imported tungsten steel |
| Insulation Waste Collection | Automatic suction collection |
| Working Environment | -5℃ to 45℃, dry and vibration-free work surface |
| Storage Capacity | 99 sets of processing parameter data |
| Production Efficiency | 750–1150 pcs/h (depending on wire type) |
