Features：
High Precision: ±0.5mm labeling accuracy
Wide Compatibility: Fits wires ≥1mm and various label sizes
Efficient Output: 700–1300 pcs/hour (adjustable by label size)
Global Voltage Support: 110V/220V, 50/60Hz ready
Customizable: Tailored versions available for special requirements
Technical Parameters：
| Item | Specification |
|---|---|

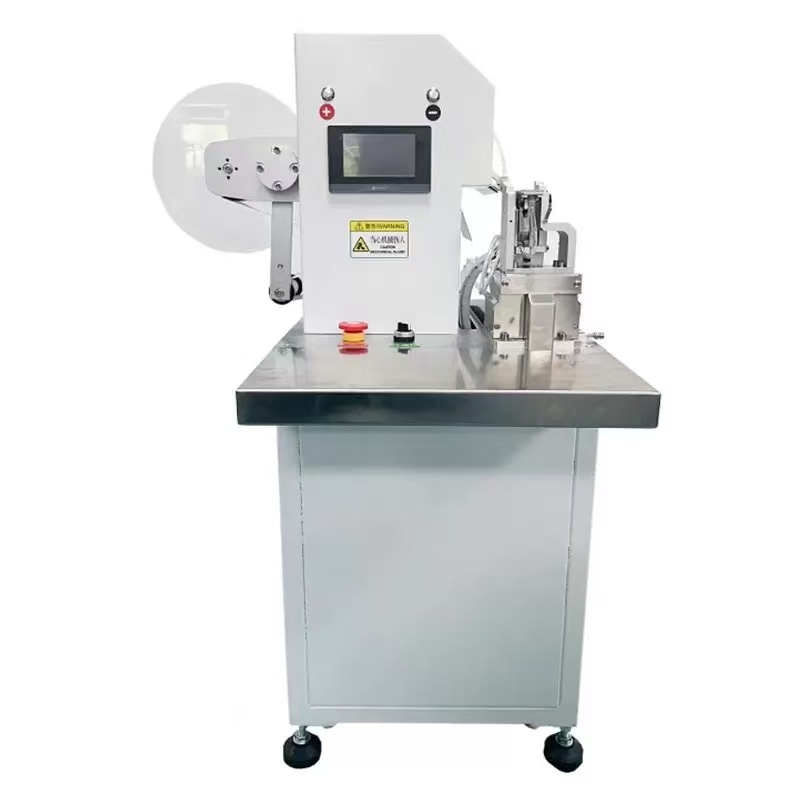

| Product Name | Fold Wire Labeling Machine |
| Model No. | HY2-A300 |
| Applicable Wire Diameter | ≥1mm |
| Applicable Label Size | Length: 25-160mm; Width: 10-50mm |
| Labeling Accuracy | ±0.5mm (approx.) |
| Production Capacity | 700-1300 pcs/hour (varies with label size) |
| Voltage | 220V/110V |
| Frequency | 50Hz/60Hz |
| Air Pressure | 0.4-0.6MPa |
| Power Consumption | 280W |
| Weight | 75KG |
| Machine Dimensions | 800L600W1050H (mm) |
| Notes | The above are standard specifications; customized versions are available based on actual customer requirements. |
