Technical Parameters：
| Item | Specification |
|---|---|

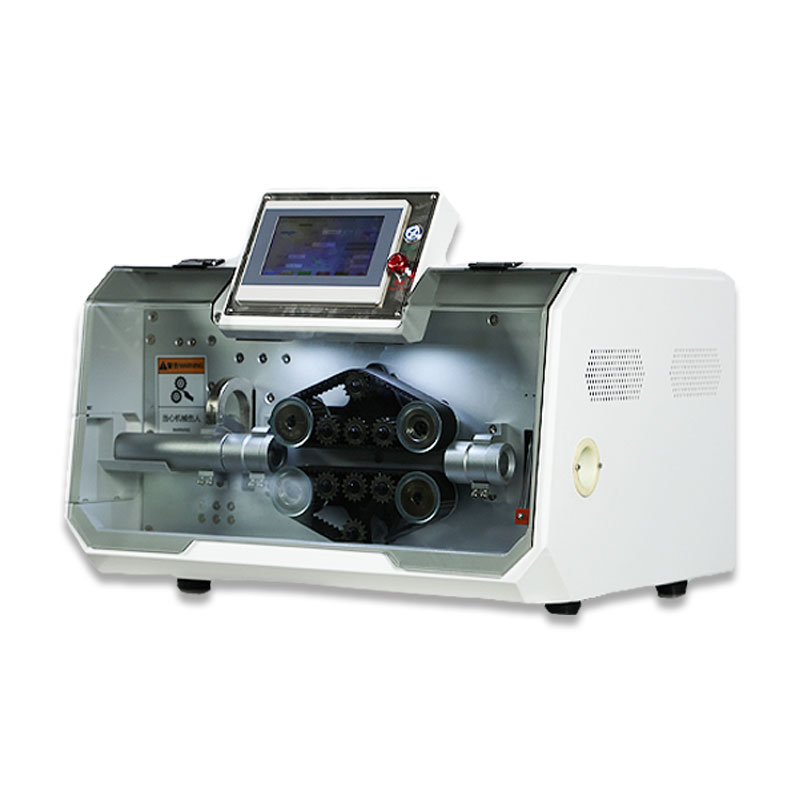

| Model | HY2-A535L |
| Display Type | 7-inch HMI (Human-Machine Interface) |

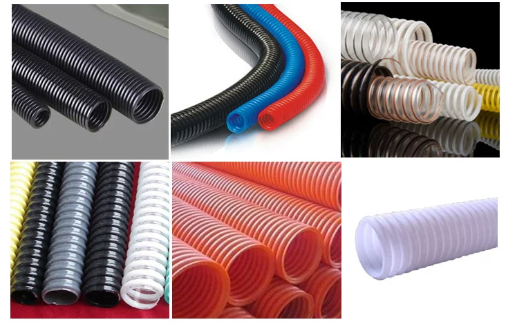

| Function | Fixed-length cutting for corrugated tubes, PVC tubes, heat-shrinkable tubes and other thin-walled pipes |
| Processing Range | 4-35mm (φ35-50mm customizable) |
| Cutting Length | 1mm - 999999.99mm |
| Cutting Tolerance | Within 0.005×L (L = cutting length) |
| Productivity | 6000 PCS/hour |
| Drive Mode | 10-wheel drive; Servo motor optional |
| Feeding Method | Belt feeding, no indentation or scratch on pipes |
| Lifting Control | Digital adjustment of pressure wheel height |
| Power Supply | AC220V 50/60Hz; 110V 50/60Hz optional |
| Air Source | No air source required |
| Dimensions (L×W×H) | 680×605×520 mm |
| Net Weight | 70kg |
Features：
Optional configuration: MES system, IoT system, fixed-point inkjet marking function, external auxiliary equipment alarm.
User-friendly system with intuitive operation via 7-inch color touch screen.
Modular interfaces for easy connection with accessories and peripheral devices.
Modular design supports future function upgrades.
Various optional accessories available, system customizable. Non-standard customization is supported for special pipe processing demands.
