feature：
This system features **high precision and sensitivity**, enabling accurate control over rotation speed and position.
It responds rapidly to both quick start-up and precise stop commands, completing actions efficiently.

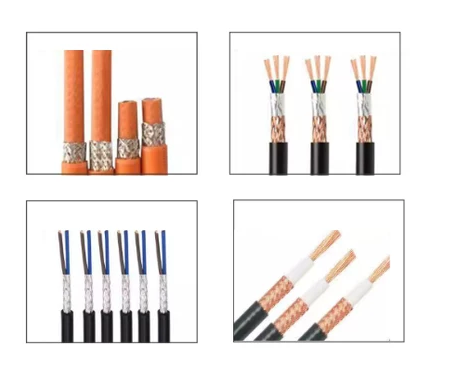

The shielding mesh can be cut after reserving a specified length, or fully cut. The cutting length is adjustable.
Featuring a simple mechanical structure, the machine offers high flexibility in use.
Technical Parameters：
| Item | HY2-A392b (Standard Version) | HY2-A393b (Upgraded Version) |
|---|---|---|
| Product Name | Shielding Mesh Cutting Machine (Standard Version) | Shielding Mesh Cutting Machine (Upgraded Version) |
| Model No. | HY2-A392b | HY2-A393b |
| Applicable Cable Size | 2–35 mm² | 35–120 mm² |
| Cutting Length Range | 10–110 mm (max. 180 mm for loose shielding mesh) | 35–250 mm |
| Control Mode | Pneumatic Control | Pneumatic Control |
| Operation Mode | Foot Pedal or Manual Button Control | Foot Pedal or Manual Button Control |
| External Dimensions (L×W×H) | 410 × 145 × 155 mm | 600 × 150 × 210 mm |
| Weight | Approx. 8 kg | Approx. 12 kg |
