Automatic Silent Copper Belt Machine
Other Small Equipment >

Features Description:

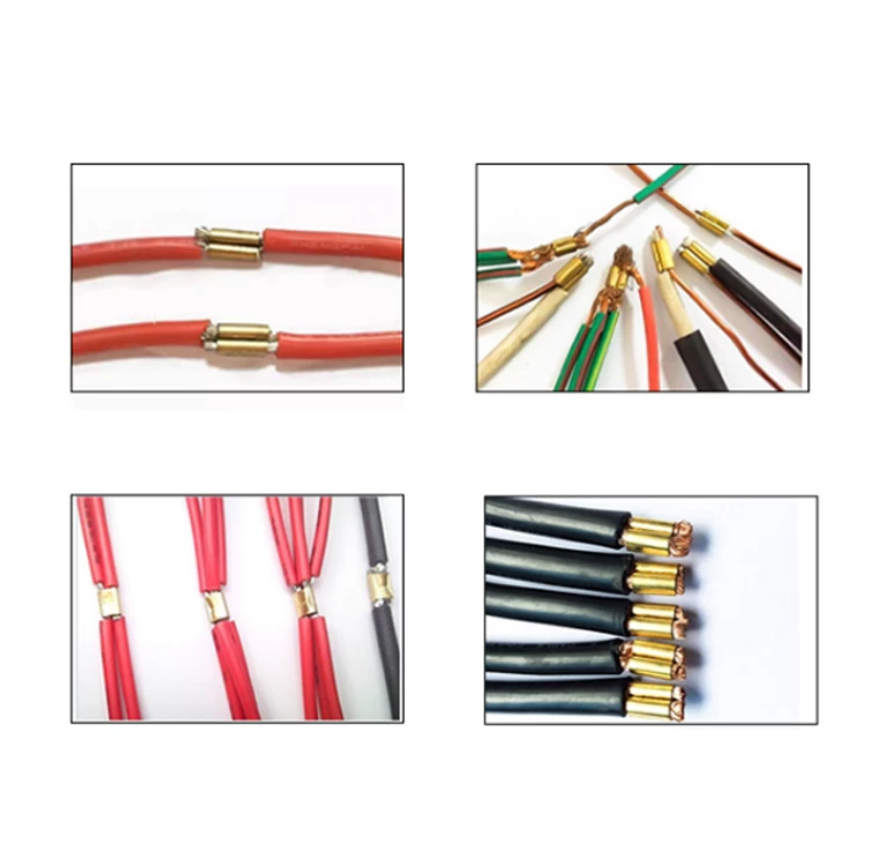

Designed specifically for wire crimping applications, this machine joins wires by pressure riveting,

 replacing traditional soldering methods. It eliminates defects such as cold soldering, dry joints,

 and air pollution, making it the simplest and most effective way to meet various safety standard

tests (UL/JIS). With user-friendly design, it is easy to operate.



Video


Features Description:

Using special continuous copper belt terminal material, the process of cutting, forming, and crimping is completed in one quick operation with no waste generated, thus saving costs.

The copper belt terminals undergo special surface treatment, resulting in extremely high tensile strength and stable quality after crimping. Straight and curved die holders are provided for different product connection requirements.



Technical Parameters:

Parameter3.0T Ultra-Silent Copper Belt Splicing Machine4.0T Ultra-Silent Copper Belt Splicing Machine
Model3.0T Ultra-Silent Copper Belt Splicing Machine4.0T Ultra-Silent Copper Belt Splicing Machine
Dimension (L×W×H)400×290×450mm500×380×580mm
Power SupplyAC 220V 50HzAC 220V 50Hz
Stroke Length23mm30mm
Weight45kg105kg
Pressing Capacity3000kg4000kg
Motor Power1.1kW1.5kW
Height Adjustment8mm8mm
