Feature：
Adopts advanced LCD backlight display and mobile phone-style operation mode, eliminating eye fatigue and cumbersome settings caused by traditional digital tube screens.
The motor adopts direct shaft output design without torque transmission loss.
Zero maintenance design, no wearing parts such as carbon brushes, electromagnetic brakes and belts, equipped with advanced electronic control braking mode.
Built-in perfect industrial-grade protection circuit, ensuring trouble-free operation for more than 20,000 hours.
It has complete data protection function, and all set data can be stored permanently.
Technical Parameters：
| Parameter | Specification |
|---|---|

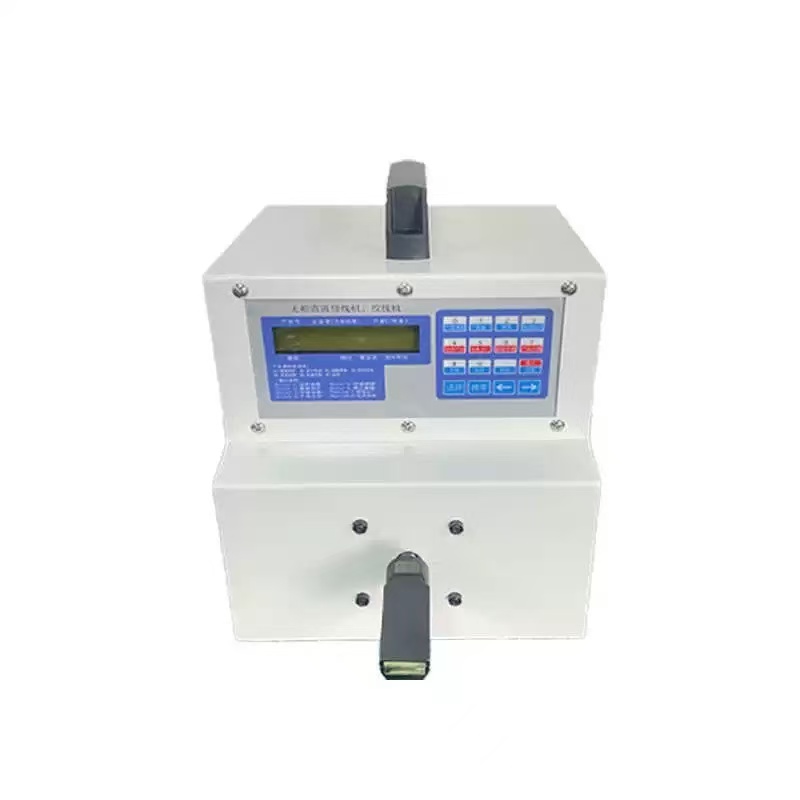

| Product Name | High-Speed Twisting Machine |
| Spindle Speed | 5000 rpm |
| Max Wire Diameter | 1.2mm (for φ20 bobbin) |
| Program Storage | 99 workpiece programs |
| Program Segments | 20 segments per program |
| Power Supply | AC220V / AC110V |
| Turns Range | 1 ~ 9999.9 turns |
| Winding Error | 0 |
| Production Counter | 9999 units max |
| Weight | 10kg |
| Dimensions (L×W×H) | 220 × 200 × 300mm |
