Feature：

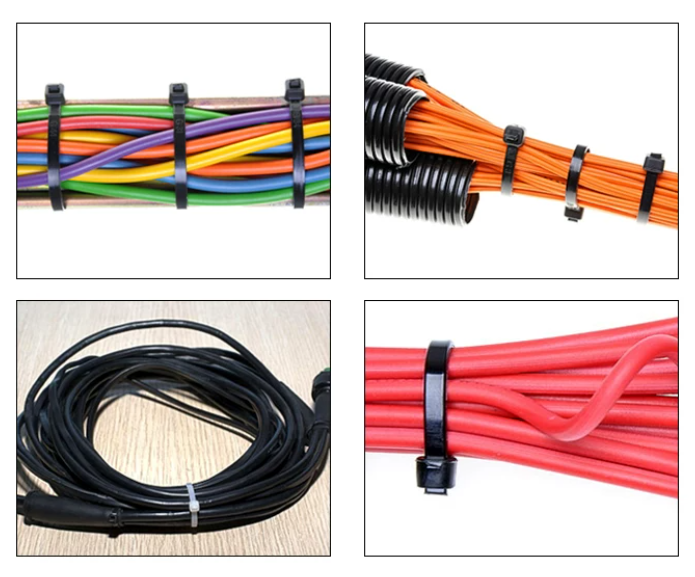

It has wide adaptability, suitable for straight or arc-shaped products (diameter > 100mm) with binding section circumferences from 3mm to 50mm. Tie tightness and tail length are digitally adjustable via the touch screen. Widely used in wire harness, cable, electronics, toy, gift, and food industries, it solves low efficiency and labor shortage issues in high-volume production environments.
Technical Parameters：
| Parameter | Specification |
|---|---|
| Model | HY-ZDZDJ |
| Cut Residual Length | 1–3mm |
| Tensile Strength of Tightened Tie | ≥20N |
| Allowable Error | ≤0.01 |
| Processing Speed | 1.3 seconds/piece (1,800 pieces/hour) |
| Power Supply | Two-phase 220V / 60Hz |
| Rated Power | 100W |
| Applicable Cable Tie Sizes | 60/80/100/120/150/200mm nylon ties |
| Dimensions (L×W×H) | 1230 × 550 × 800mm |
| Machine Weight | 150kg |
