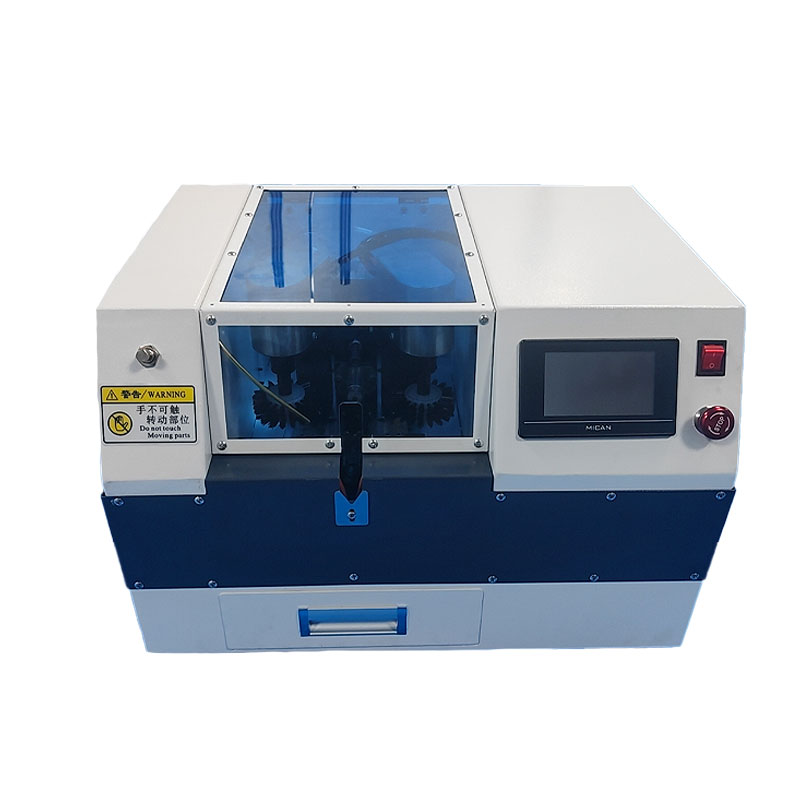

Automatic Brushing Shielding Net Flipping and Cutting Machine

Equipment Introduction：

The brush and cut braiding machine is an automated equipment designed to comb andcut the shielding braid of shielded cables (data cables) to a specified length.

It adopts pneumatic-electric working principle: the shielding braid is first combed bybrushes, then flipped backward, and finally cut by a cutting knife. The minimumreserved length after combing and flipping is 3mm; common reserved lengths are 3mm,5mm, 6mm, and 8mm.

Tel：18420496864

 Online

Product Details

Video

Specifications：

Parameter	Specification
Mode	HY32-A035 DHigh-end all-in-one brush and trimmer machine
Input Voltage	220V 50Hz
Air Pressure	0.6–1MPa
Overall Dimensions	L1110 × W910 × H1500mm
Weight	300kg
Total Power	900W
Applicable Wire Diameter	9–27mm
Brushing Length	10–90mm
Flipping & Cutting Length	5–50mm (Reserved Wire Length)

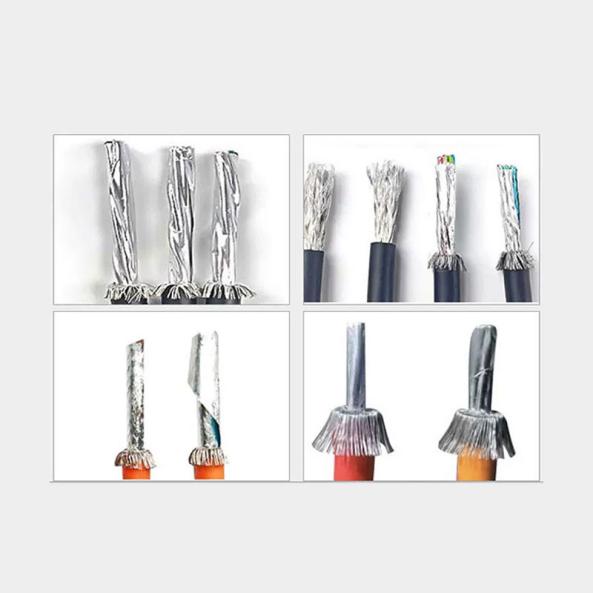

Function	It can comb the shielding mesh, flip it to one side outside the wire, and then cut it off. The reserved shielding wire length is adjustable with digital control for convenient and quick setting.
