High Voltage Cable Stripping & Cutting All-in-One Machine

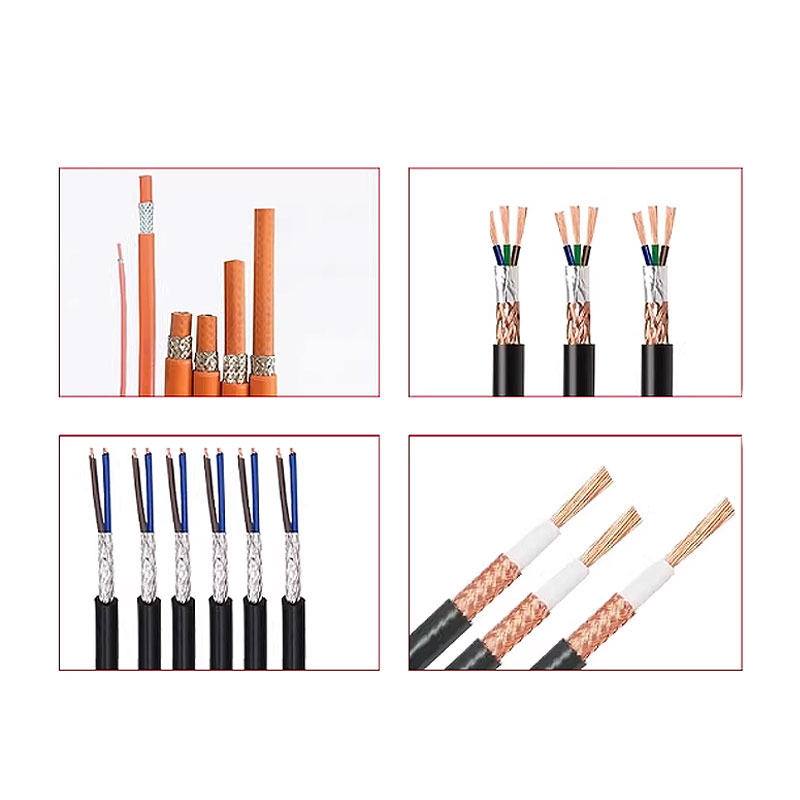

Stripping Outer Insulation: Precisely strip the outer insulation of high-voltage cables, with adjustable length and high precision.

Aluminum Foil Cutting: Accurately cut the inner aluminum foil layer of the cable

Aluminum Foil Tearing: Completely tear off the cut aluminum foil layer without residue.

Shielding Layer Cutting: Precisely cut the cable shielding layer as required.

Shield Flipping: Smoothly flip the cut shielding layer to meet assembly needs.

Inner Insulation Stripping: Precisely strip the inner insulation layer of the cable core without damaging the conductor.

Parameter	Specification
Mode	HY-04
Conductor Specification	16–95mm² (Replace matching cutters and fixtures)
Stripping Length	0–150mm, stripping length tolerance ±0.1mm. Customizable stripping length with compensation setting available
Shield Cutting Length	0–150mm, shield cutting length tolerance ±0.1mm. Customizable shield cutting length with compensation setting available
Qualified Rate	Not less than 99%
Cycle Time	Minimum up to 15 seconds (varies with different products)
Expansion Interface	Reserved multiple interfaces, support expansion of scanning code, printing, MES connection and other functions
Product Tolerance	±1mm
