Model

50TS

Name

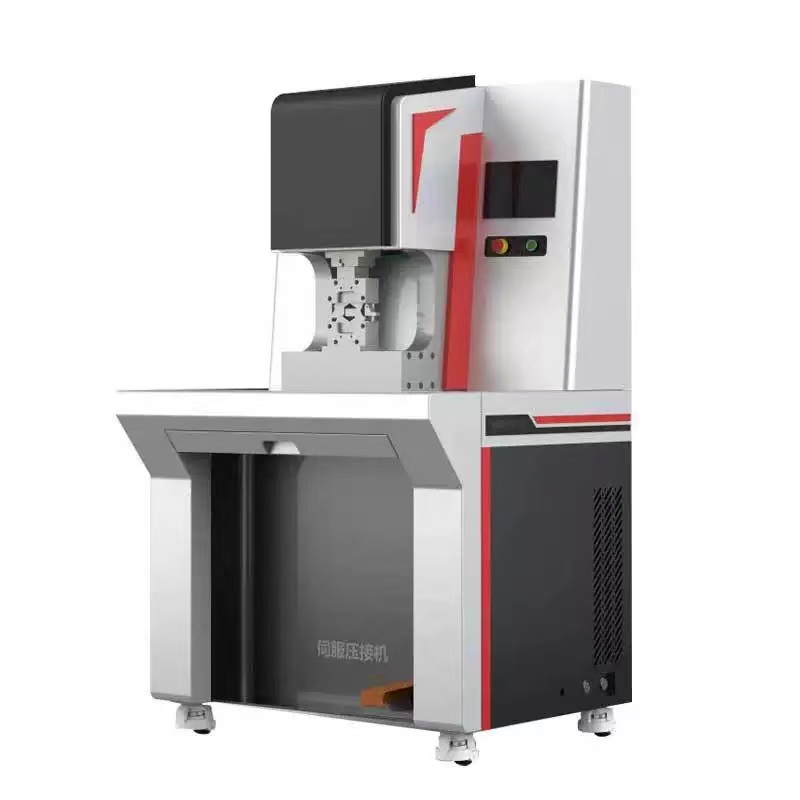

CNC Servo Terminal Crimping Machine

Functions

Terminal crimping, crimp force monitoring, barcode scanning recognition

Dimensions (W×L×H)

86×80×149 cm

Weight

612 KG

Power Supply

AC 380V / 50Hz

Crimping Stroke

0-70 mm

Motor Power

4.5 KW

Crimping Capacity

50T

Crimping Range

16-300 mm² (Depends on terminal and wire specifications)

Crimping Accuracy

±0.03 mm

Display

High-definition touchscreen

Pressure Monitoring

Bottom-plate type pressure monitoring (wall-mounted pressure monitoring optional)
