Model

HY2-A624

Display Mode

7-inch HMI (Human-Machine Interface)

Functions

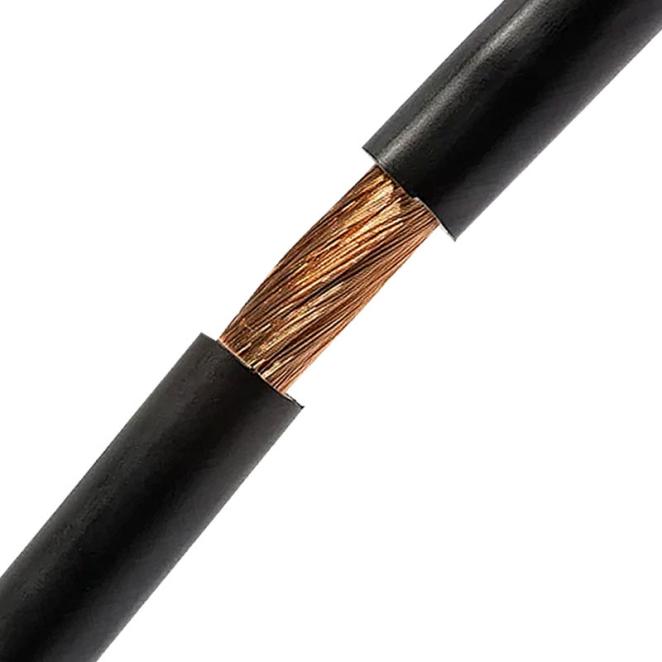

Automatic fixed-length cutting and stripping for single-core wires, multi-core cables, and shielded cables

Wire Type

Single-core wires, multi-core cables, shielded cables, electric wires, PVC, etc.

Processing Range

10–240mm²

Cutting Length

1mm–999999.99mm

Cutting Tolerance

Within 0.002*L (L = Cutting Length)

Stripping Length

Front full stripping: 1–300mm; Front half stripping: 1–1000mmRear full stripping: 1–150mm; Rear half stripping: 1–500mm

Maximum Conduit Diameter

Φ32

Wheel Lifting Method

Servo motor wheel lifting

Conduit Swinging Method

Cylinder-driven conduit swinging

Tool Material

High-quality imported high-speed steel

Productivity

2000PCS/hour (depending on wire length and size)

Drive Mode

24-wheel drive (full servo motor)

Wire Feeding Mode

Belt feeding, no indentation or scratch on cables (with stripping pressure function)

Lifting Operation Mode

Digital adjustment of pressure wheel height

Power Supply

AC220V 50/60Hz; Optional 110V 50/60Hz

Air Supply

0.5-0.8Mpa clean air source

Dimensions (L×W×H) mm

1020×590×1140

Net Weight

280KG
