Model

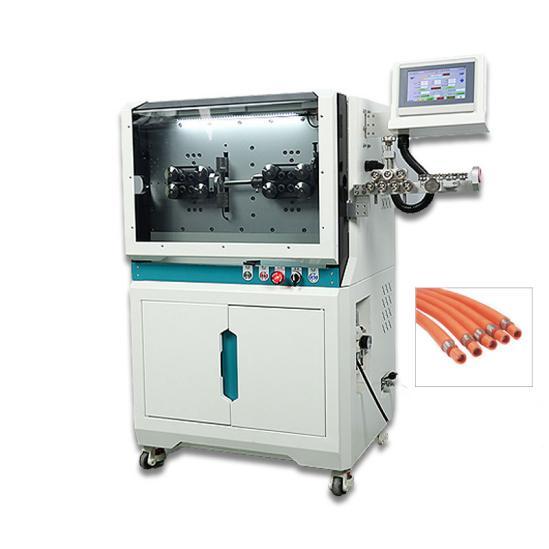

HY2-A603Y with stand

Display

7-inch HMI (Human-Machine Interface)

Function

Fully automatic fixed-length cutting and stripping for single-core wires, multi-core cables, and shielded cables

Applicable Wire Types

Single-core wires, multi-core cables, shielded cables, electrical wires, PVC wires, etc.

Processing Range

0.75 – 30 mm²

Cutting Length

1mm – 999999.99mm

Cutting Tolerance

Within 0.002*L (L = cutting length)

Stripping Length

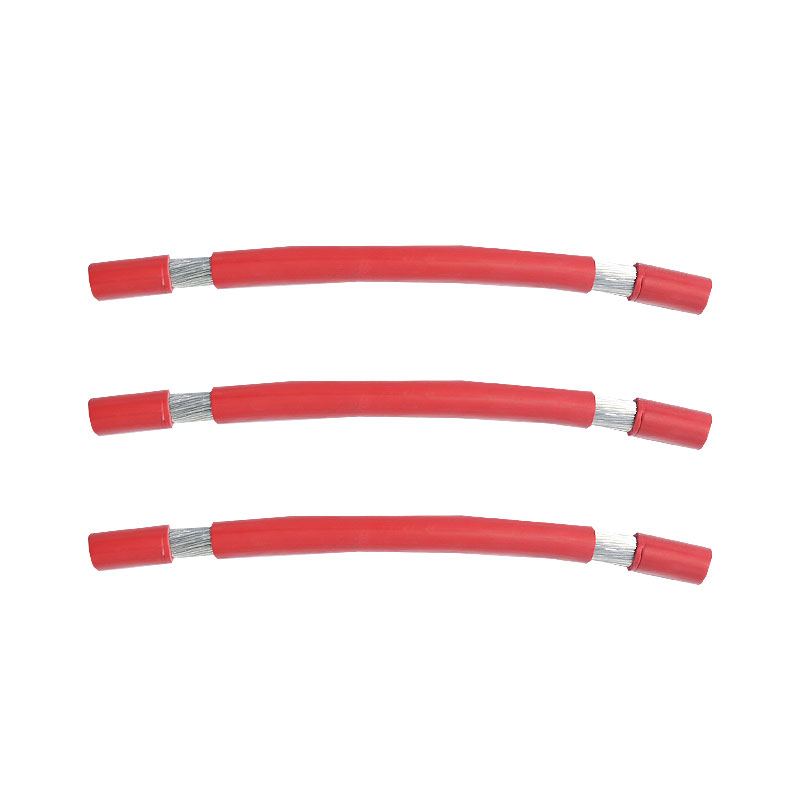

Front full strip: 1–200mm; Front half strip: 1–1500mmRear full strip: 1–100mm; Rear half strip: 1–300mm

Max Passable Wire Diameter

Φ18mm

Tool Material

High-quality imported high-speed steel

Productivity

3500 PCS/hour (depending on wire length and size)

Drive System

16-wheel drive (feeding stepper motor + knife rest servo motor); servo feeding is optional

Feeding Method

Belt feeding (no pressure marks/scratches on wires, with stripping pressure adjustment function)

Pressure Wheel Adjustment

Digital adjustment of pressure wheel height

Power Supply

AC220V 50/60Hz; 110V 50/60Hz is optional

Air Source

0.5MPa clean compressed air

Dimensions (L×W×H, mm)

707 × 590 × 1140

Net Weight

140 kg

Notes

Limited cutting capacity: 50 mm²
