Model

HY2-A603H Inner & Outer Sheath Stripping Machine

Display

7-inch HMI (Human-Machine Interface)

Function

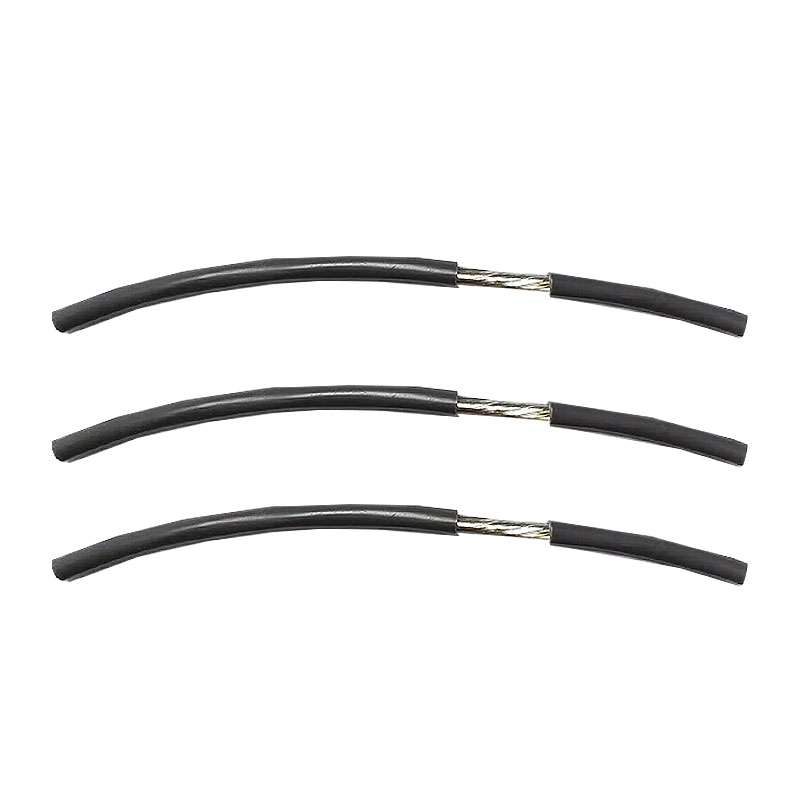

① Fully automatic fixed-length cutting and stripping for single-core wires, multi-core cables, and shielded cables

② For multi-core sheathed cables: outer sheath stripping, inner core stripping, and cutting completed in one operation

Applicable Wire Types

Single-core wires, multi-core cables, sheathed cables, electrical wires, PVC wires, etc.

Processing Range

0.75 – 30 mm² (including sheathed cables with ≤10 cores)

Cutting Length

1mm – 999999.99mm

Cutting Tolerance

Within 0.002*L (L = cutting length)

Inner & Outer Stripping Length

Front stripping: Outer sheath full strip: 10–200mm; Inner core strip: 1–50mmRear stripping: Outer sheath full strip: 10–80mm; Inner core strip: 1–50mm

Max Passable Wire Diameter

Φ18mm

Tool Material

High-quality imported high-speed steel

Productivity

3500 PCS/hour (900 PCS/hour for sheathed cables) (depending on wire length and size)

Drive System

16-wheel drive (feeding stepper motor + knife rest servo motor); servo feeding is optional

Feeding Method

Belt feeding (no pressure marks/scratches on wires, with stripping pressure adjustment function)

Pressure Wheel Adjustment

Digital adjustment of pressure wheel height

Power Supply

AC220V 50/60Hz; 110V 50/60Hz is optional

Air Source

0.5MPa clean compressed air

Dimensions (L×W×H, mm)

680 × 605 × 520

Net Weight

95 kg

Notes

Limited cutting capacity: 50 mm²
