Model

HY2-A615

Display

7-inch HMI (Human-Machine Interface)

Function

Fully automatic fixed-length cutting and stripping for single-core wires, multi-core cables, and shielded cables

Applicable Wire Types

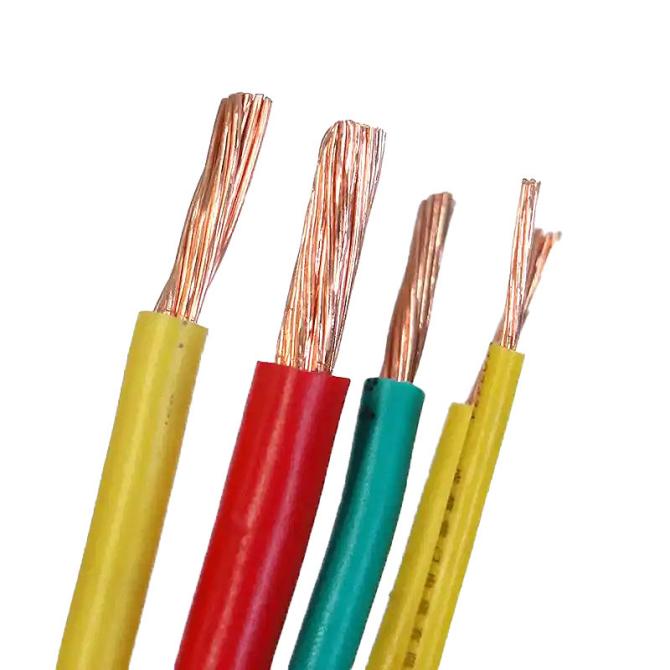

Single-core wires, multi-core cables, shielded cables, electrical wires, PVC wires, etc.

Processing Range

2.5 – 150 mm²

Cutting Length

1mm – 999999.99mm

Cutting Tolerance

Within 0.002*L (L = cutting length)

Stripping Length

Front full strip: 1–300mm; Front half strip: 1–1000mmRear full strip: 1–150mm; Rear half strip: 1–500mm

Max Conduit Diameter

Φ33mm

Lifting Wheel Mod

Stepper motor-driven lifting wheel

Conduit Swing Mode

Cylinder-driven conduit swing

Tool Material

High-quality imported high-speed steel

Productivity

2000 PCS/hour (depending on wire length and size)

Drive System

24-wheel drive (feeding stepper motor + knife rest servo motor)

Feeding Method

Belt feeding (no pressure marks/scratches on wires, with stripping pressure adjustment function)

Pressure Wheel Adjustment

Digital adjustment of pressure wheel height

Power Supply

AC220V 50/60Hz; 110V 50/60Hz optional

Air Source

0.5–0.8MPa clean compressed air

Dimensions (L×W×H, mm)

1020 × 590 × 1140

Net Weight

270 kg
