Display Mode

7-inch HMI Human-Machine Interface

Functions

1. Processing of large cables such as power cords, corrugated wires, base station coaxial cables, electric cables, multi-core wires, multi-layer wires, shielded wires, and new energy vehicle charging pile cables;2. Adopts rotary cutting mode. No need to replace the blade, it can cut and strip cables of all different specifications and models. Supports storing 100 sets of processing parameters and formulas.

Wire Type

Single-core wire, multi-core wire, power cord, multi-layer wire, shielded wire, electric wire, etc.

Processing Range

0.75 -- 30 square millimeters

Cutting Length

120mm - 999999.99mm

Cutting Tolerance

Within 0.002*L (L = Cutting Length)

Stripping Length

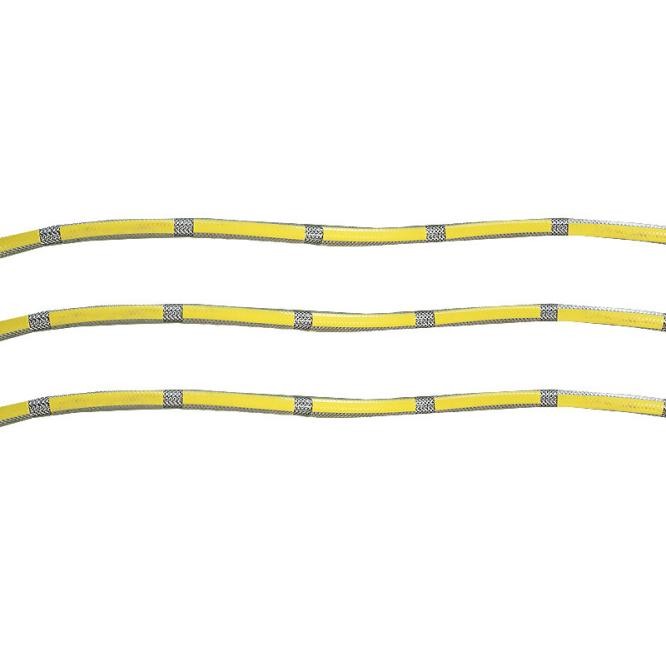

Front full stripping: 1-200mmFront half stripping: 1-1500mmRear full stripping: 1-100mmRear half stripping: 1-300mm

Max Allowable Passing Diameter

Φ18mm

Cutter Material

High-quality imported high-speed steel

Productivity

800-1000 PCS/Hour (Depends on wire length and size)

Driving Mode

16-wheel drive (Feeding stepper motor, tool rest servo motor, rotary knife servo motor); Full servo optional

Wire Feeding Mode

Belt wire feeding, no indentation or scratch on cables (with stripping pressure function)

Lifting Operation Mode

Digital pressure wheel height adjustment

Rotary Stripping Knife

Ground screw rod

Rotary Stripping Knife Material

High-speed steel / Tungsten steel (Optional)

Quantity of Rotary Stripping Knife

2 pcs

Rotary Stripping Knife Power

Feeding: Servo; Rotation: Servo

Rotary Stripping Auxiliary Clamp

Servo + Ground screw rod

Power Supply

AC220V 50/60Hz; 110V 50/60Hz optional

Air Source

0.5Mpa clean air source

Dimension (LWH)

12848135cm

Net Weight

180kg

Remarks

Ultimate cutting capacity: 50 square millimeters
