parameter
Item | Specification |
Model | HY2-A603Q |
Display Mode | 7-inch Human-Machine Interface (HMI) |
Function | Fully automatic fixed-length cutting for single-core wire, multi-core cable and shielded cable; comes with front-end wire stripping function |
Wire & Material Type | Single-core wire, multi-core cable, shielded cable, electric wire, PVC pipe, etc. |
Processing Range | 0.25 – 30 mm² |
Cutting Length | 1mm - 999999.99mm |
Cutting Tolerance | Within 0.002*L (L = cutting length) |

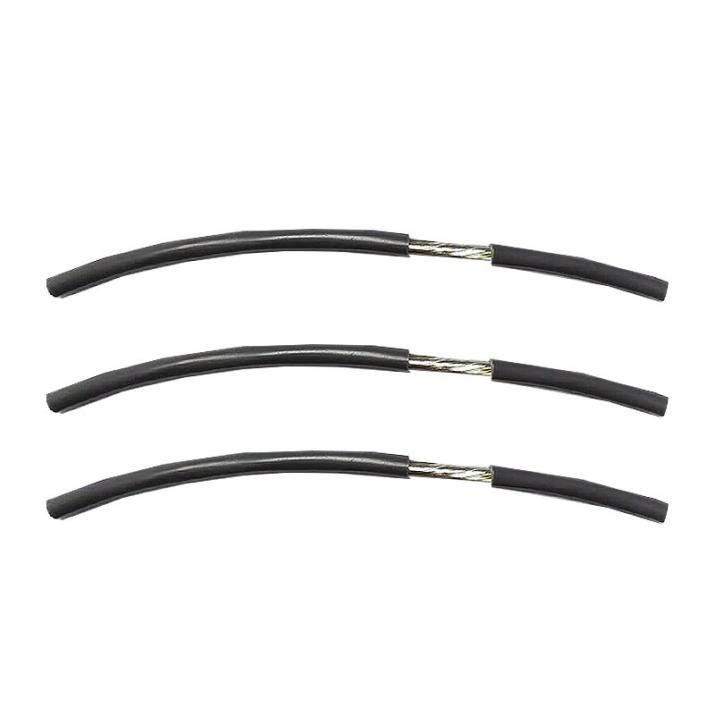

Stripping Length | Front full stripping: 1-200mmFront half stripping: 1-1500mm |
Max Allowable Passing Diameter | Φ18mm |
Cutter Material | High-quality imported high-speed steel |
Productivity | 5500 PCS/hour (depending on wire length and specification) |
Driving Mode | 16-wheel drive (feeding stepper motor, tool rest servo motor); servo feeding optional |
Wire Feeding Mode | Belt feeding, no indentation or scratch on cable surface (with stripping pressure function) |
Lifting Adjustment Mode | Digital height adjustment of pressure roller |
Power Supply | AC220V 50/60Hz; 110V 50/60Hz optional |
Air Source | Clean air source of 0.5Mpa |
Dimension (L×W×H) | 480×605×520 mm |
feature：
Optionally available for Model B: MES system, IoT system, fixed-point inkjet printing function, mid-cutting function, and alarm function for external auxiliary equipment.
The group user-friendly system can be operated intuitively through a 7" color touchscreen.
The modular design of the module makes it easy to connect accessories and peripheral devices.
The module is designed in a modular way, and it can be upgraded in the future.
Various optional accessories are available, and the system can be customized.
Special cable processing is provided, allowing for non-standard customization.
