Display Mode

7-inch HMI

Function

Fully automatic fixed-length cutting & stripping for single-core wire, multi-core cable and shielded cable

Applicable Wire Type

Single-core wire, multi-core cable, shielded cable, electric wire, PVC wire, etc.

Processing Range

2.5 – 120 mm²

Cutting Length

1mm – 999999.99mm

Cutting Tolerance

Within 0.002×L (L = cutting length)

Stripping Length

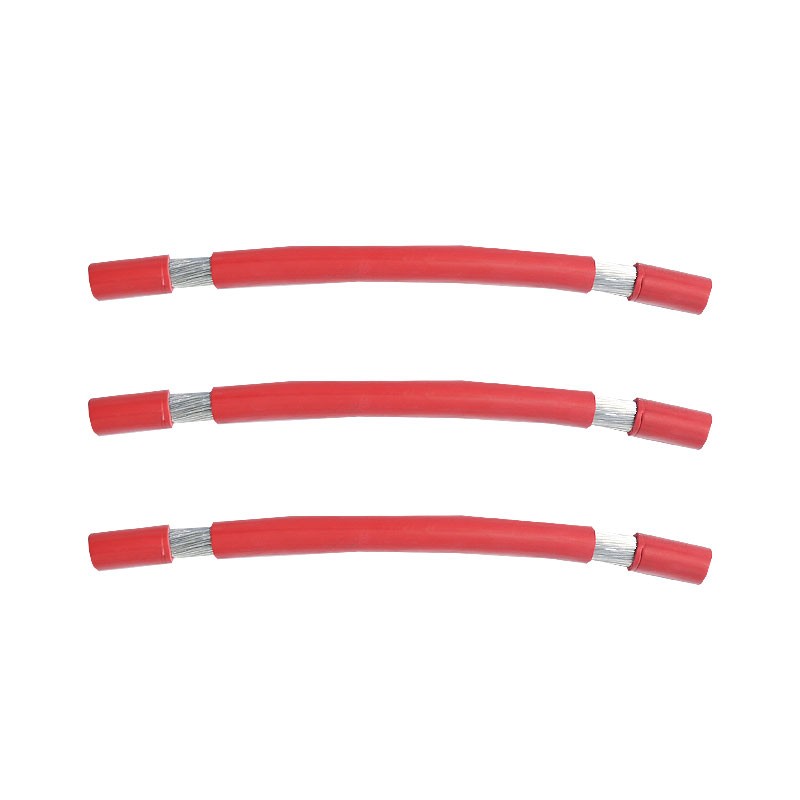

Front full stripping: 1–300mmFront half stripping: 1–1000mmRear full stripping: 1–150mmRear half stripping: 1–500mm

Max Conduit Diameter

Φ27

Roller Lifting Mode

Stepper motor lifting

Conduit Swing Mode

Cylinder driven swing

Cutter Material

Premium imported high-speed steel

Productivity

2000 PCS/hour (varies with wire length and size)

Driving Mode

24-wheel drive (feeding stepper motor + cutter rest servo motor); servo feeding optional

Wire Feeding Mode

Belt feeding, no indentation or scratch on cable surface (with stripping pressure function)

Height Adjustment Mode

Digital pressure roller height adjustment

Power Supply

AC220V 50/60Hz; 110V 50/60Hz optional

Air Source

Clean air source: 0.5–0.8Mpa

Dimension (L×W×H)

1020×590×1140 mm
