Features:
Optional configurations: MES system, IoT system, fixed-point inkjet marking function, intermediate stripping function, and external auxiliary device alarm;
User-friendly system with intuitive operation via a 7-inch color touch screen;
Modular interfaces for easy connection with accessories and peripheralequipment;Modulardesign supporting future upgrades;
Various optional accessories available with customizable systems. Special cable processing and non-standard customization are supported.

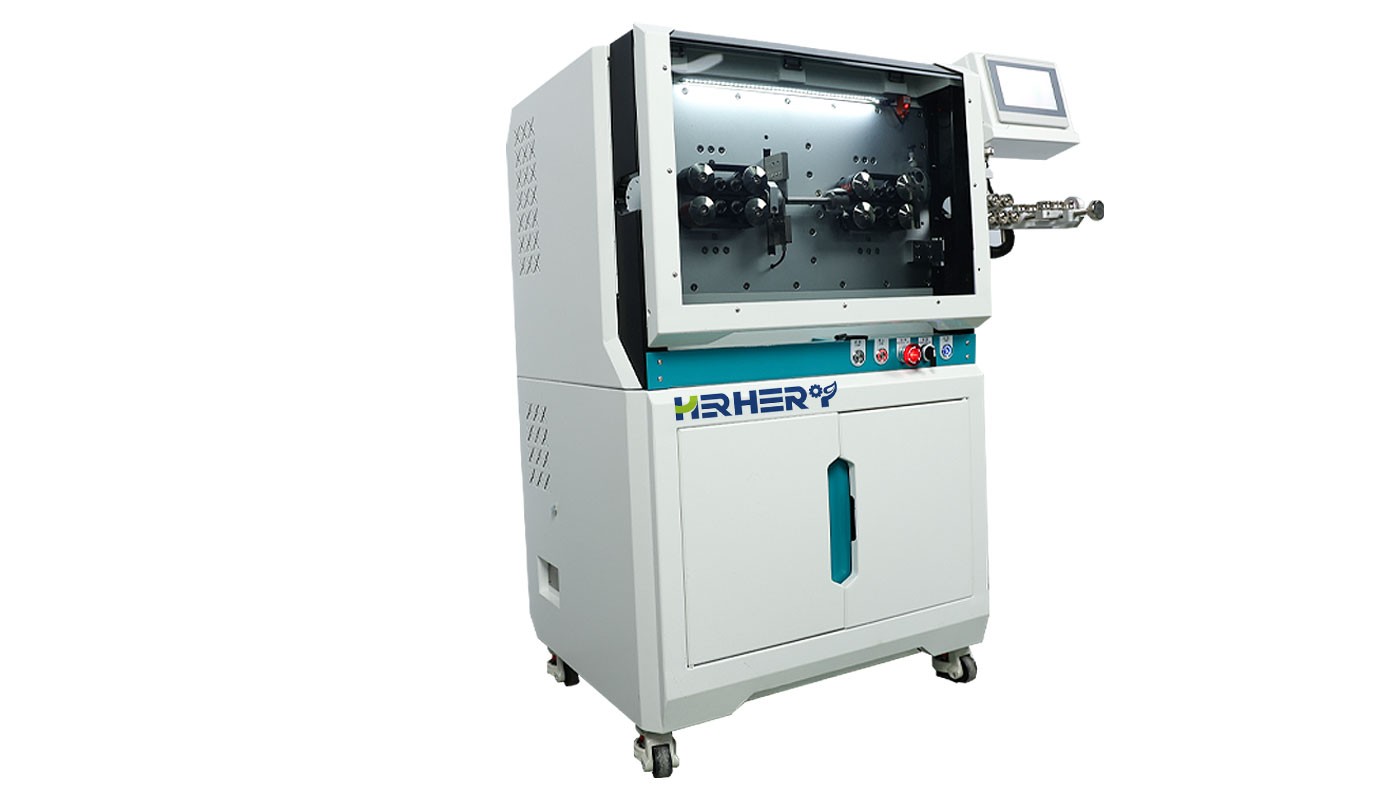

Model | HY2-A603Y With Table | ||||||||||
Display Mode | 7-inch HMI | ||||||||||
Function | Applicable for single-core wire, multi-core cable, shielded cable; automatic fixed-length cutting and stripping | ||||||||||
Wire Type | Suitable for single-core wire, multi-core cable, shielded cable, electric wire, PVC and other materials | ||||||||||
Processing Range | 0.75--30 square mm | ||||||||||
Cutting Length | 1mm-999999.99mm | ||||||||||
Cutting Tolerance | Within 0.002L (L = cutting length) | ||||||||||
Stripping Length | Front full stripping: 1-200mm, Front half stripping: 1-1500mm | ||||||||||
Rear full stripping: 1-100mm, Rear half stripping: 1-300mm | |||||||||||
Max Passable Diameter | Max passing diameter: Φ18mm | ||||||||||
Cutter Material | High-quality imported high-speed steel | ||||||||||

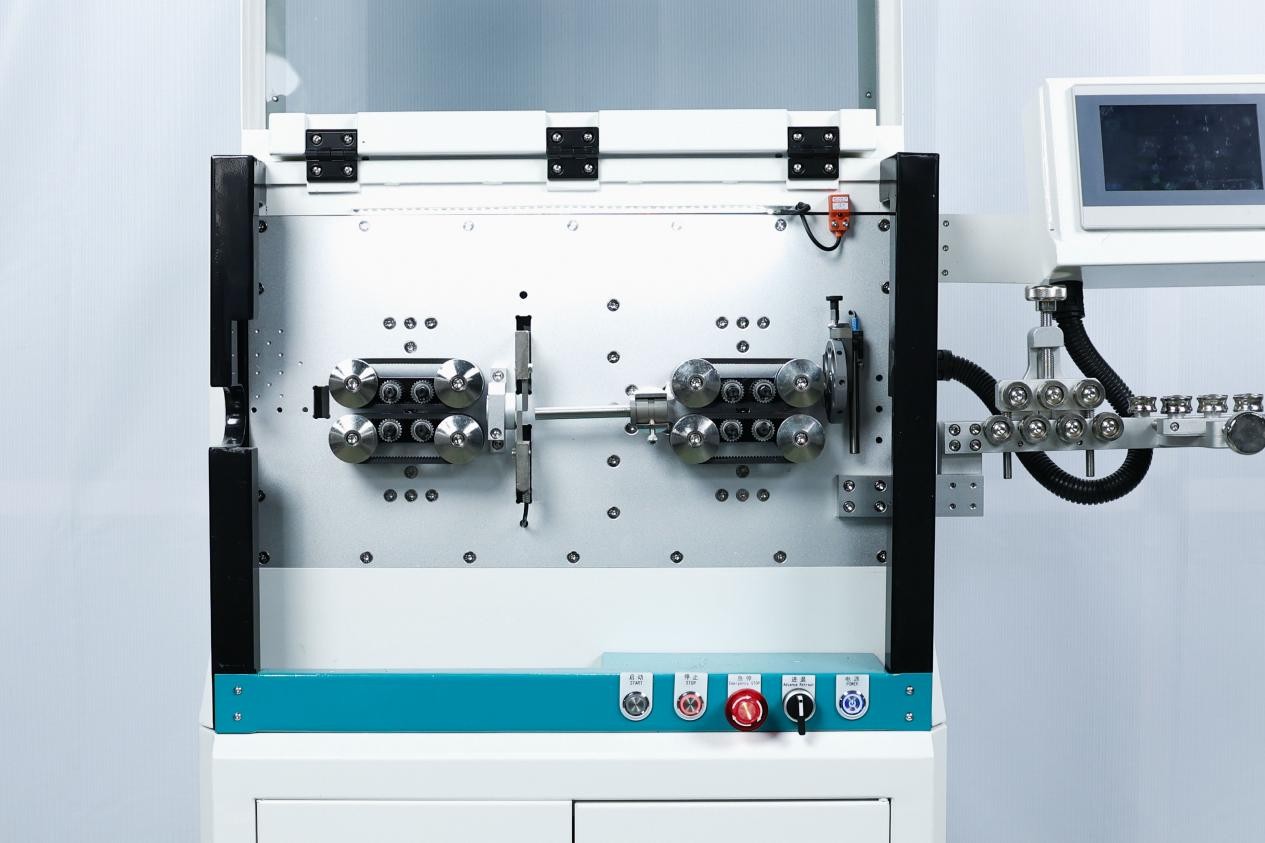

Drive Mode | 16-wheel drive (feeding stepper motor, tool rest servo motor); servo feeding is optional | ||||||||||
Wire Feeding Mode | Belt wire feeding, no indentation or scratch on cable. (With stripping pressing function) | ||||||||||
Lifting Operation Mode | Digital adjustment of pressing wheel height | ||||||||||
Power Supply | AC220V 50/60Hz; 110V 50/60Hz optional | ||||||||||

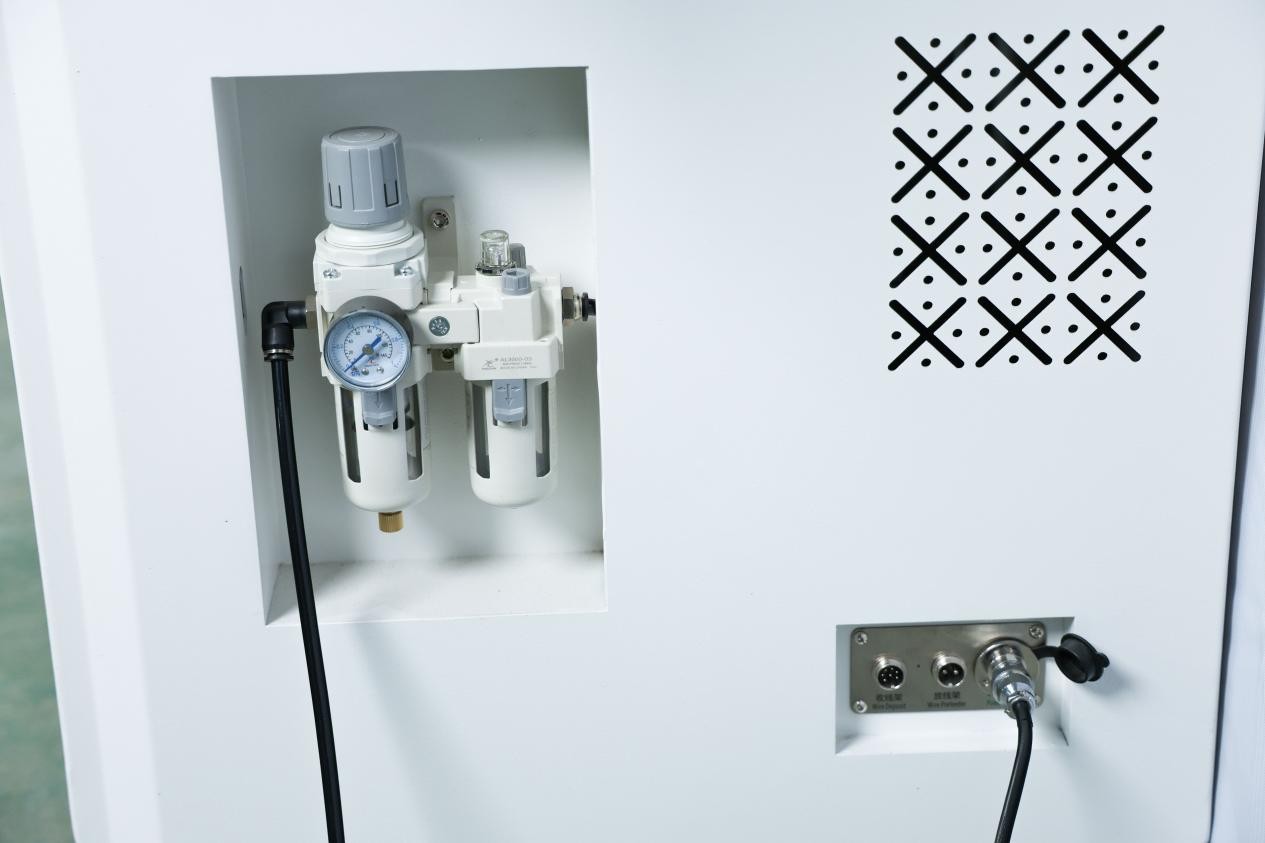

Air Pressure Source | Clean air source: 0.5Mpa | ||||||||||
mm：Dimensions (LWH) mm | Dimensions: 707590*1140mm | ||||||||||
Net Weight | Net Weight: 140 kg | ||||||||||
Remarks | Max cutting capacity limited to 50 square mm |
No. | Name | Model | Brand | Origin | Qty | Remarks |
1 | Human-Machine Interface (HMI) | 7 inch | Kinco | Shenzhen | 1 | |
2 | Motion Controller | — | Forward | Shenzhen | 1 | |
3 | Wear-resistant Rubberized Drive Belt | 3M | Customized | Zhejiang | 4 | |
4 | Ball Screw | 210 | — | Taiwan | 1 | |
5 | Ball Screw | 160 | Customized | Zhejiang | 2 | |
6 | Servo Motor | 400W | Inovance | Zhejiang | 1 | |
7 | Stepper Motor | — | Chuangyi | Zhejiang | 6 | |
8 | Driver | 6A | Servo | Shenzhen | 6 | |
9 | Linear Guide Rail | EHG15 | HIWIN Taiwan | Taiwan | 3 | |
10 | Solenoid Valve | — | SMC | Japan | 2 | |
11 | Bearing | — | HCH | Ningbo | 60 |
