Display Mode

7-inch Human-Machine Interface (HMI)

Functions

1. Fully automatic fixed-length cutting and stripping for single-core wire, multi-core cable and shielded cable

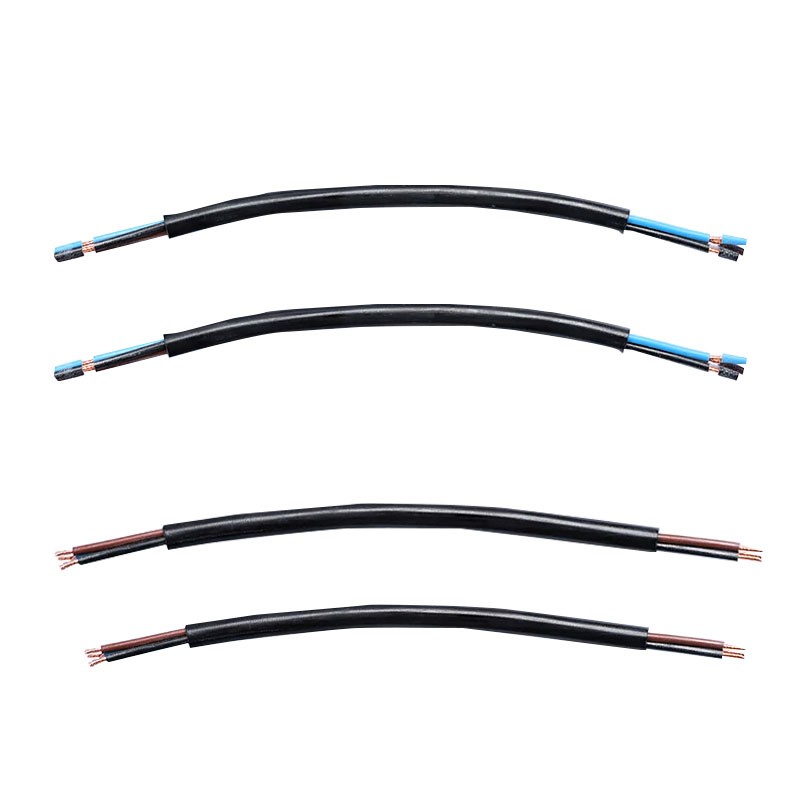

;2. For multi-core sheathed wire: outer sheath stripping, inner core stripping, cutting and wire twisting completed in one process;

3.Twisting function for single-core stranded wire / multi-core stranded wire;

4. Forward twisting, reverse twisting and untwisting

Wire Type

Single-core wire, multi-core cable, sheathed wire, electric wire, PVC material, etc.

Processing Range

0.75 – 30 mm² (including sheathed wire within 10 cores)

Cutting Length

1mm - 9999999.99mm

Cutting Tolerance

Within 0.002*L (L = cutting length)

Inner & Outer Stripping Length

Front stripping:Outer sheath full stripping: 10-200mm, Inner core: 1-50mmRear stripping:Outer sheath full stripping: 10-80mm, Inner core: 1-50mm

Twisting Stroke

120mm

Max Allowable Passing Diameter

Φ18mm

Cutter Material

High-quality imported high-speed steel

Productivity

3500 PCS/hour; 900 PCS/h for sheathed wire(Subject to wire length and wire size)

Driving Mode

16-wheel drive (feeding stepper motor, tool rest servo motor);Servo feeding is optional

Wire Feeding Mode

Belt feeding type, no indentation or scratch on cable surface(With stripping pressure function)

Lifting Adjustment Mode

Digital height adjustment of pressure roller

Power Supply

AC220V 50/60Hz; 110V 50/60Hz optional

Air Source

Clean air source of 0.5Mpa

Dimension (L×W×H)

707×590×1140 mm

Net Weight

140 kg

Remarks

Ultimate cutting capacity: 50 mm²
