Fully Automatic Multi-to-Multi Combined Crimping MachineHY2-A2-2

Features Description:

※ Equipment speed up to 3000 PCS/hour (depending on product specifications).

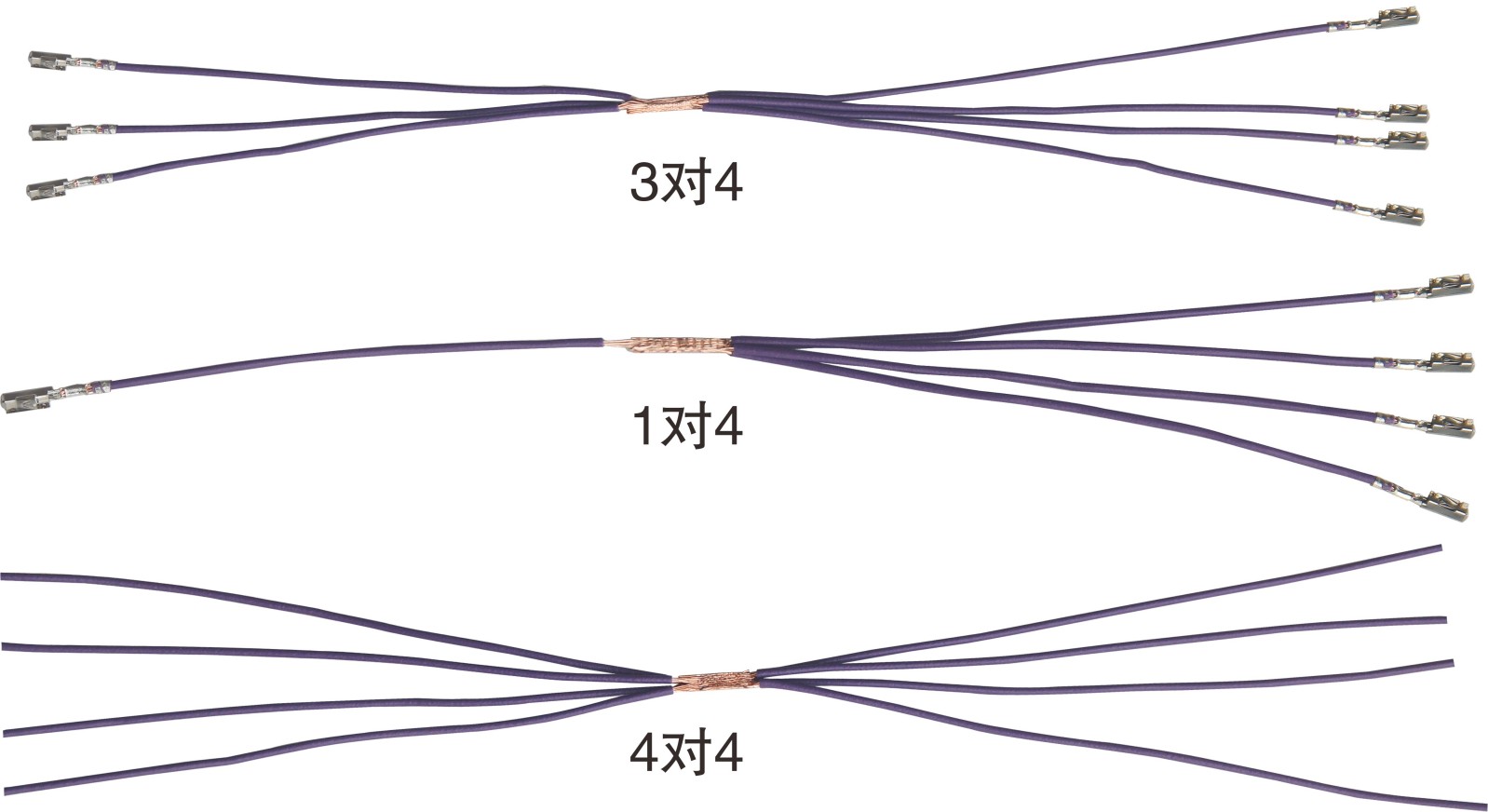

※ Supported pairing modes: 1-to-1, 1-to-2, 1-to-3, 1-to-4, 2-to-2, 2-to-3, 2-to-4, 3-to-3, 3-to-4, 4-to-4.※ Processes up to 4 different specifications (colors) of wires simultaneously.

※ Processes up to 4 different types of terminals simultaneously.

※ CCD terminal inspection: detects terminal appearance, over/under crimping, crimping wing defects, stray strands, wire color, etc.

※ Crimp force monitoring: real-time monitoring of the crimping process.

※ Equipped with KEYENCE intelligent control system (Japan) and high-performance servo motors for precision, efficiency and stability.

Tel：18420496864

 Online

Product Details

Specifications：

Specifications	Parameters
Power Supply	AC 380V / 50/60 Hz, 3-Phase
Air Pressure	5 - 6 kgf (Clean, dry air required)
Functions	Wire cutting, single-end stripping, double-end stripping, single-end waterproof seal insertion, single-end crimping, single-end soldering
Wire Colors	Up to 4 colors
Quality Inspection	Crimp force monitoring system, CCD terminal visual inspection system, wire presence/absence check, wire joint check, terminal presence/absence check
Applicable Wire Range	0.13mm² - 2.5mm² (AWG#26 - AWG#11)
Production Capacity	3000 PCS/hour (Depending on product specifications)
Cutting Length	180mm - 9999mm
Cutting Accuracy	≤ 1mm + 0.1% of cutting length
Stripping Length	0 - 16mm
Crimping Capacity	2.5T × 4 stations (2-4 stations configurable per customer requirements)
Waterproof Seal Unit	1 station (1-2 waterproof seal units configurable per customer requirements)
Machine Dimensions	L4500 × W1100 × H1900mm (Excluding protrusions)
