Automatic feeding via vibratory bowl, convenient and efficient.
CCD orientation detection ensures accurate material selection.
Automatic computer-based monitoring: the machine stops automatically and displays fault causes for issues like low air pressure or motor abnormalities, enabling quick troubleshooting.
Easy adjustment with short setup time, significantly reducing machine downtime.
Touchscreen adjustment of crimping position for precise and stable terminal crimping.
|
|
Parameter | Specification |
Power Supply | AC 220V / 50 / 60Hz, single-phase |
Air Pressure | 5 – 6 kgf (clean compressed air required) |

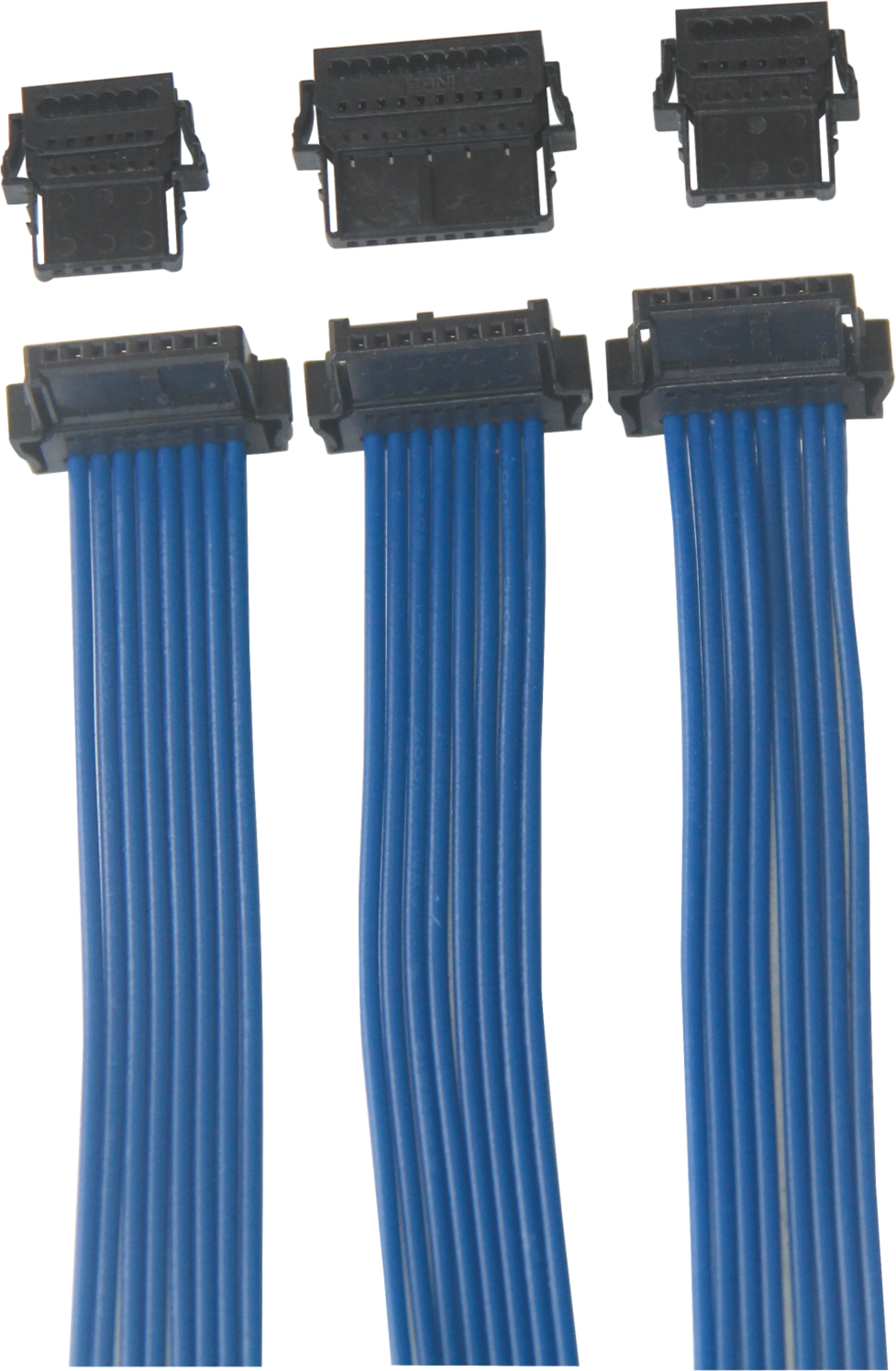

Functions | Insulation displacement crimping, front/back crimping |
Processing Range | 2P – 20P |
Output Capacity | 3600 PCS/hour (subject to product specifications) |
Crimping Accuracy | ±0.01mm |
Machine Dimensions (L×W×H) | 780 × 740 × 1400 mm (excluding protrusions) |
