Power Supply

AC380V 50/60Hz 3-phaseAir Pressure: 5–6 kgf (clean compressed air required)

Functions

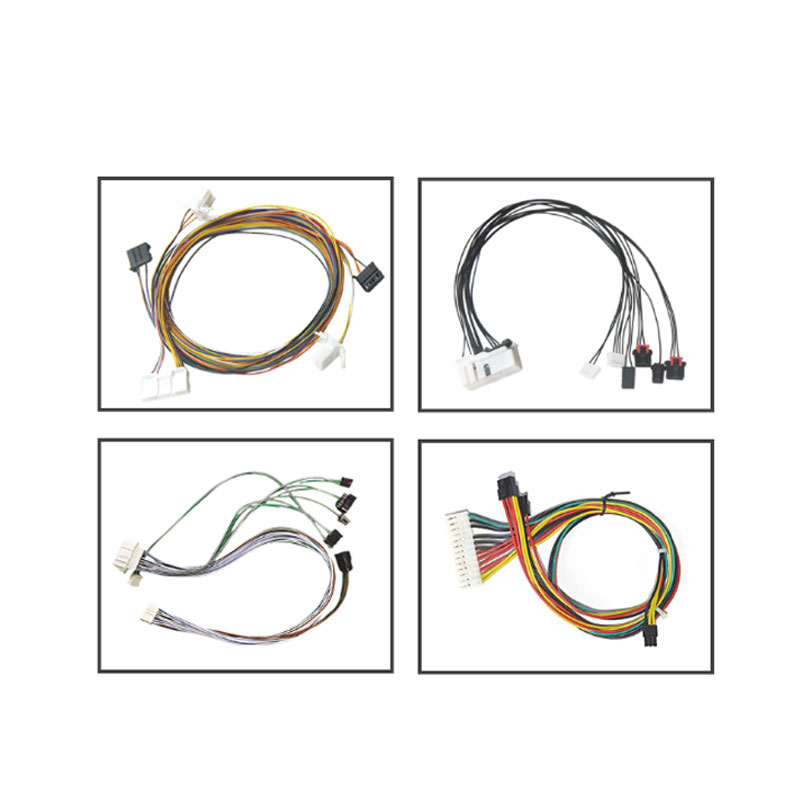

Wire cutting, single-end stripping, double-end stripping, single-end crimping, double-end crimping, single-end insertion, double-end insertion, multi-end insertion, waterproof plug insertion

Quality Inspection

Pressure management system, CCD core wire inspection, CCD stripping end inspection, CCD waterproof plug position inspection, CCD terminal appearance inspection, terminal insertion force detection, terminal pull-back force detection, wire presence check, wire splice check, terminal presence check

Wire Color & Range

36 colors availableProcessing range: 0.13mm² – 4.0mm² (AWG26 – AWG11)

Output Capacity

1250 PCS/hour (subject to product specifications)

Cutting Length & Accuracy

Length: 180mm – 9999mmAccuracy: ≤ 1mm + 0.1% of cutting length

Stripping Length

0 – 16mm

Crimping Capacity

3 × 2.5T crimping machines (3–10 units available upon request)

Waterproof Plug

1 unit (1–4 crimping machines available upon request)

Machine Dimensions (L×W×H)

4000 × 2100 × 1800 mm (excluding protrusions)
