Technical Parameters：
| Parameter | Specification |
|---|---|
| Wire Gauge Range | AWG24#–AWG10# |
| Cutting Length | 70mm–9999mm (0.1mm setting unit) |
| Stripping Length | 1–15mm |
| Heat Shrink Tubing Specs | Length: 12–30mm; Inner Diameter: 2.5–7.0mm |
| Crimping Force | 2.0T–3.0T |
| Crimping Stroke | 30mm |
| Applicable Dies | Universal OTP Applicators |
| Inspection Functions | Air pressure detection, wire presence detection, terminal presence detection, crimp force monitoring (optional) |
| Control System | Single-chip microcomputer control |

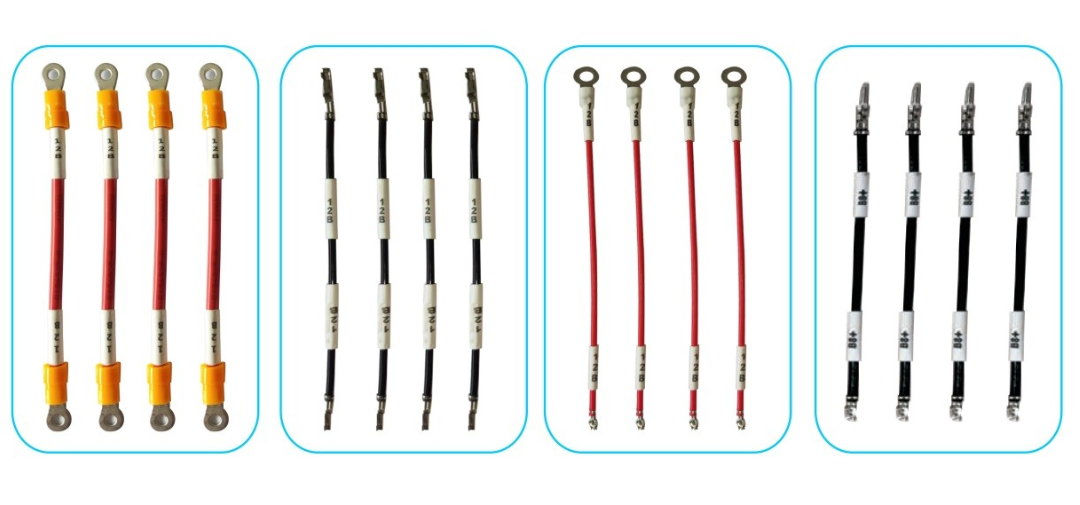

| Functions | Wire cutting, single/double-end stripping, single/double-end crimping, single-end tubing feeding (with heat shrinking), single-end laser marking |
| Efficiency | 1800–2500 pcs/h (varies by wire and terminal type, under continuous operation) |
| Compressed Air Requirement | 0.5–0.8MPa (170N/min) |
| Power Supply | Single-phase AC220V, 50/60Hz, 16A |
| Overall Dimensions | L1700 × W850 × H1700 mm |
| Key Component Brands | Taiwan HIWIN / TBI / Fuyu lead screws, Taiwan AirTAC pneumatic cylinders and solenoid valves, Leadshine / Inovance servo motors, Fuyu linear guides, Japan-imported bearings |
