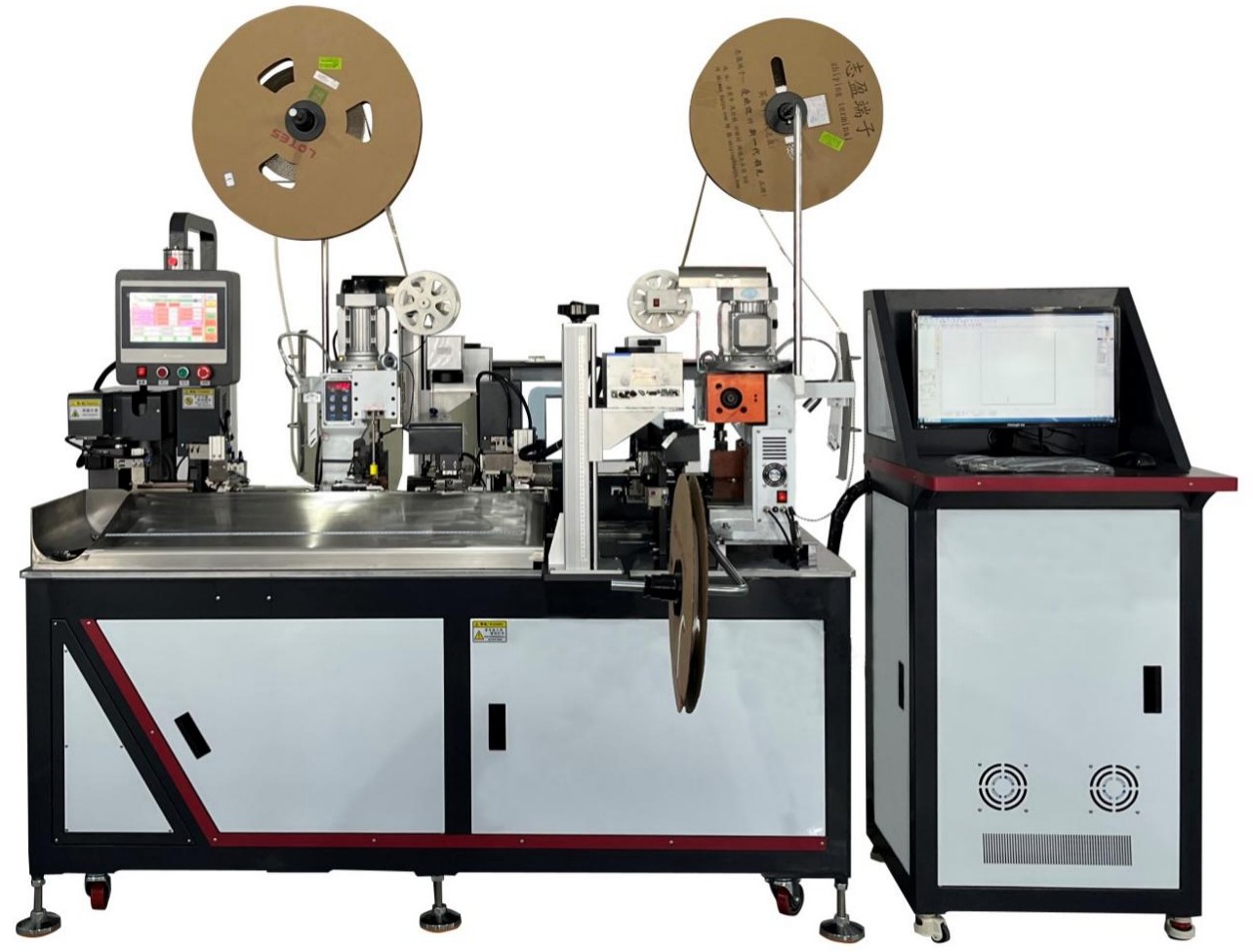

Technical Parameters：
| Parameter | Specification |
|---|---|
| Cutting Length | 70mm–9999mm (0.1mm setting unit) |
| Stripping Length | 1–15mm |
| Heat Shrink Tubing Specs | Length: 12–30mm; Inner Diameter: 2.5–7.0mm |
| Marking Method | Laser |
| Crimping Force | 2.0T–3.0T |
| Crimping Stroke | 30mm |
| Applicable Dies | Universal OTP Applicators |
| Inspection Functions | Air pressure detection, wire presence detection, terminal presence detection, crimp force monitoring (optional) |
| Control System | Single-chip microcomputer control |

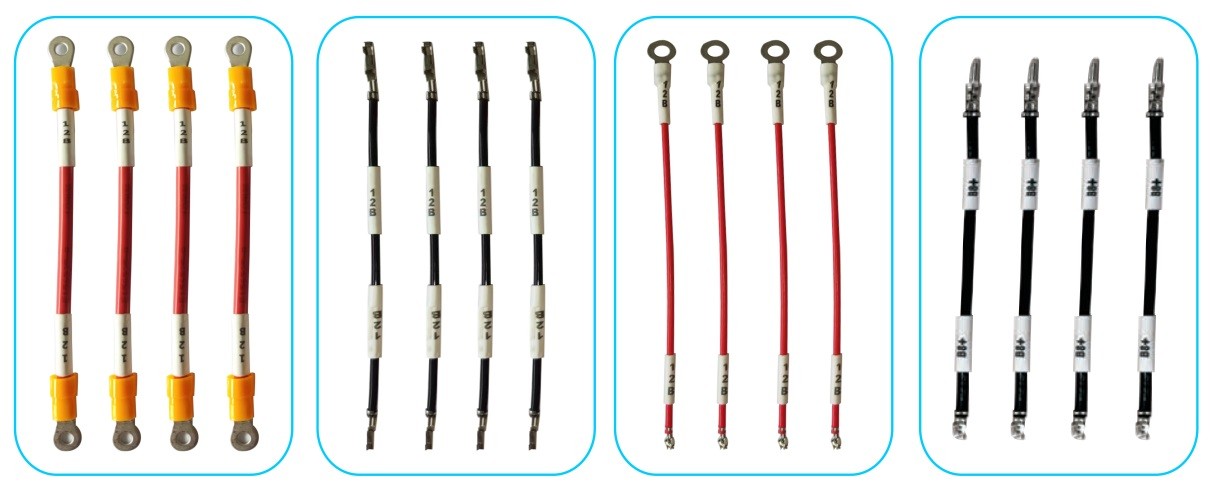

| Functions | Wire cutting, single/double-end stripping, single/double-end crimping, single/double-end tubing feeding (with heat shrinking), single/double-end laser marking |
| Efficiency | - Double crimping & double tubing: 900–1200 pcs/h- Double crimping & single tubing: 1500–1800 pcs/h- Single crimping & single tubing: 2000–2500 pcs/h(Varies by wire/terminal type, under continuous operation) |
| Compressed Air Requirement | 0.5–0.8MPa (170N/min) |
| Power Supply | Single-phase AC220V, 50/60Hz, 16A |
| Overall Dimensions | L2000 × W850 × H1700 mm |
| Key Component Brands | Taiwan HIWIN / TBI / Fuyu lead screws, Taiwan AirTAC pneumatic cylinders and solenoid valves, Leadshine / Inovance servo motors, Fuyu linear guides, Japan-imported bearings |
