Technical Parameters：
| Basic Parameters | Specification |
|---|---|
| Wire Cross Section | #22~#16 AWG (customisable for larger sizes) |
| Cut Length | 80mm-9999mm (0.1mm setting unit; shorter lengths customisable) |
| Stripping Length | 1mm-15mm (strip length customisable) |
| Crimping Force | 2T (customisable) |
| Crimping Stroke | 30mm (40mm stroke customisable) |
| Tubing Length | 12mm-40mm |
| Tubing Diameter | φ2.5mm-φ7.0mm |
| Applicable Dies | Universal OTP dies |
| Inspection Functions | Air pressure detection / wire presence check / terminal presence check / crimped terminal presence check (pressure monitoring optional, vision system optional) |
| Control Method | Motion control card |

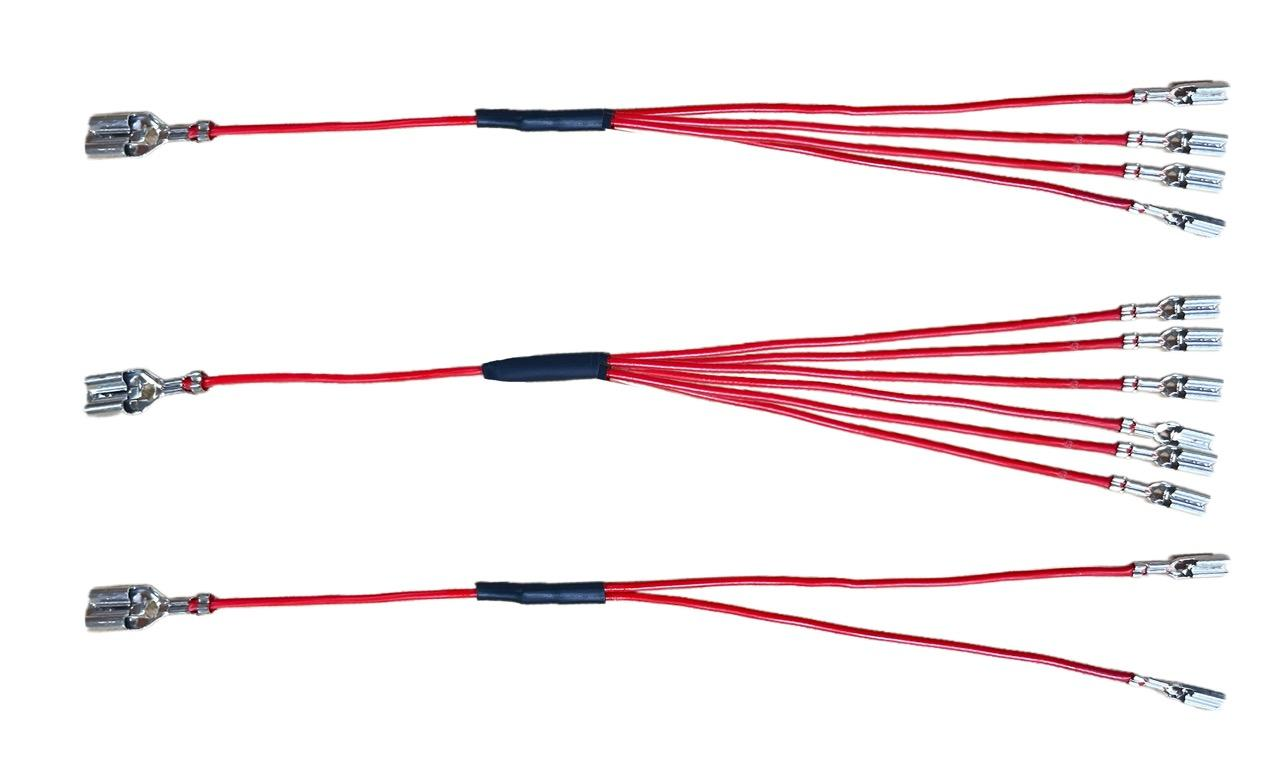

| Functions | 1-to-2, 1-to-3, 1-to-4, 1-to-5, 1-to-6 |
| Efficiency | 600-800 pcs/h (custom models subject to actual output) |
| Compressed Air | ≥0.55 MPa |
| Power Supply | Single-phase AC220V, 50/60Hz, 32A |
| Overall Dimensions | L2550 × W900 × H1800 mm (excluding protrusions) |
| Key Component Brands | Taiwan TBI lead screw, Taiwan AirTAC cylinder, AirTAC linear guide, Japan NSK bearing, Xinjie servo motor |
