Wire Cutting Range

0.3-4 square

Cutting Length

80–9999 mm (resolution: 0.1 mm; shorter lengths customizable)

Stripping Length

1–15 mm (stripping length customizable)

Crimping Force

2–3 T (customizable)

Crimping Stroke

30 mm (40 mm customizable)

Tubing Length

12–35 mm

Tubing Diameter

φ2.5–φ7.0 mm

Applicable Dies

Universal OTP dies

Detection Devices

Air pressure detection / wire presence detection / marker tube presence detection / crimped terminal presence detection (pressure management optional, vision optional)

Control Method

Motion control card

Functions

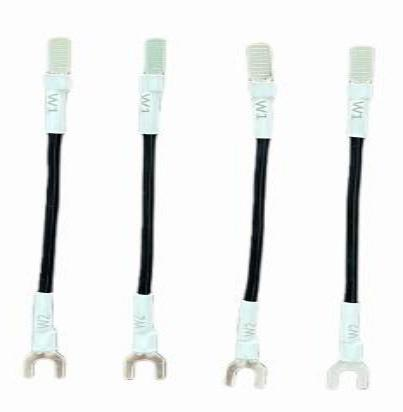

Wire cutting, single (double) end stripping, single (double) end crimping, single (double) end heat-shrinkable marker tube installation

Efficiency

1100–1600 pcs/h (custom models based on actual production capacity)

Compressed Air Requirement

≥0.55 MPa

Power Supply

Single-phase AC220V, 50/60 Hz, 32 A

Dimensions (L×W×H)

2000 × 800 × 1800 mm (excluding protrusions)

Main Component Brands

Taiwan TBI lead screw, Taiwan AirTAC cylinder, AirTAC linear guide, Japan NSK bearing, well-known servo motor
