Wire Gauge Range

0.2–4 mm² (larger sizes customizable)

Cutting Length

50 mm–9999 mm (settable in 0.1 mm increments; shorter lengths customizable)

Stripping Length

1 mm–15 mm (stripping length customizable)

Crimping Force

2T terminal machine (customizable)

Crimping Stroke

30 mm (40 mm stroke customizable)

Applicable Dies

Universal OTP dies (side-feed dies / straight-feed dies / pneumatic dies)

Detection Systems

Air pressure detection / Wire presence detection / Terminal presence detection / Crimped terminal presence detection / Waterproof plug presence detection(Pressure monitoring optional) (Vision system optional)

Control Mode

Motion control card

Functions

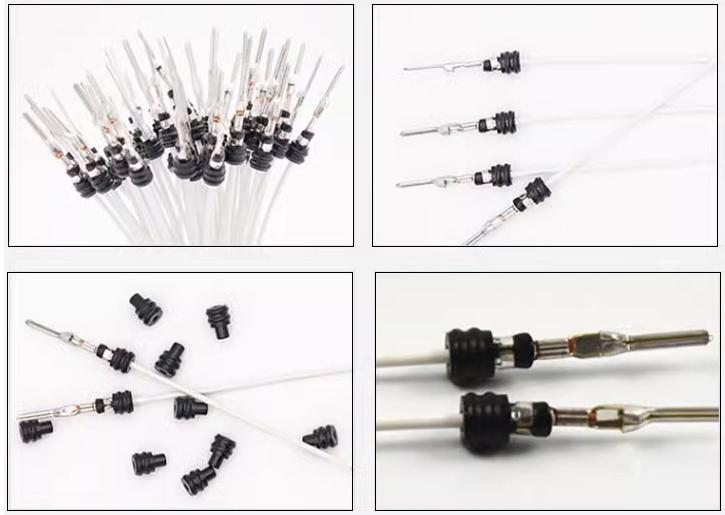

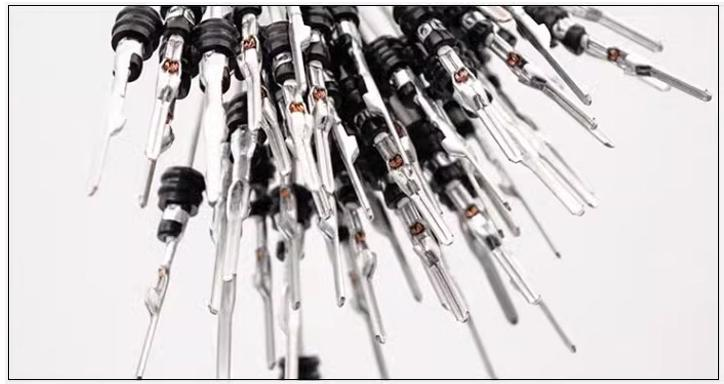

Wire cutting, single/double-end stripping, single-end waterproof plug insertion, single-end crimping, single-end twisting & tin dipping

Production Efficiency

1100–1300 units/hour (customized models subject to actual output)

Compressed Air Requirement

≥0.55 MPa

Power Supply

Single-phase AC220V, 50/60Hz, 32A

Overall Dimensions

L1300 × W900 × H1800 (mm) (excluding protrusions)

Major Component Brands

Taiwan TBI ball screws, Taiwan AirTAC cylinders, AirTAC linear guides, Japan NSK bearings, Xinjie servo motors
