Parameter | Specification |
Product Name | HY31-A095F |
Applicable Wire Types | [Note: Original table leaves this blank; add your wire gauge range here if needed] |
Equipment Functions | Wire feeding, wire cutting, half-stripping, full-stripping, terminal riveting, resistor feeding, lead cutting, resistor riveting |
Processing Wire Length | 50 mm ~ 9999 mm |
Production Efficiency | 1000 PCS/hour |
Cutting Length Tolerance | ≤ 0.2% of total length |
Stripping Length | End A: 0 ~ 14 mm; End B: 0 ~ 14 mm |
Equipment Weight | Approx. 1000 kg |
Equipment Dimensions | L 2.15 m × W 1 m × H 2.1 m |
Working Voltage | AC 220V ~ 50Hz / 10A |
Working Air Pressure | 0.5 ~ 0.6 MPa |
1. The equipment enables stable and reliable continuous production, features an elegant and modern design, and is easy to operate and debug.

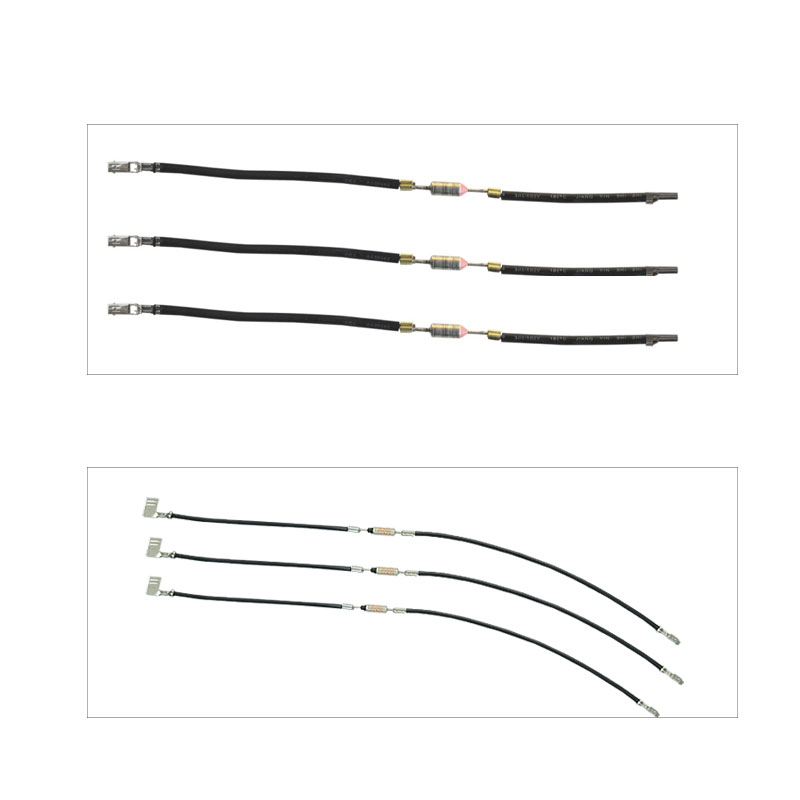

2. The quality of finished products meets the sample requirements.
3. Minimum wire length: 45mm.
4. Production cycle (example for single-wire terminal riveting, wire length 45–500mm): Approximately 900–1000 PCS/hour.
5. Operation: One operator is required for material feeding and production monitoring; the equipment’s working height is approximately 1000mm.
6. All components undergo black oxide, chrome plating, or anodizing treatments. The frame and sheet metal parts are made of cold-rolled steel with baking paint and 304 stainless steel, with safety guards installed on all mechanical sections.
