Wire Gauge Range

0.3–4 mm² (loose terminals require customization)

Cutting Length

280 mm–9999 mm (settable in 0.1 mm increments; shorter lengths customizable)

Stripping Length

1 mm–15 mm (stripping length customizable)

Crimping Force

2T–3T (customizable; servo terminal machine optional)

Crimping Stroke

30 mm (40 mm stroke customizable)

Tubing Insertion Length

12 mm–35 mm

Tubing Insertion Diameter

φ2.5 mm–φ7.0 mm

Applicable Dies

Universal OTP dies

Detection Systems

Air pressure detection / Wire presence detection / Marker tube presence detection / Crimped terminal presence detection(Pressure management optional) (Vision system optional)

Control Mode

Motion control card

Functions

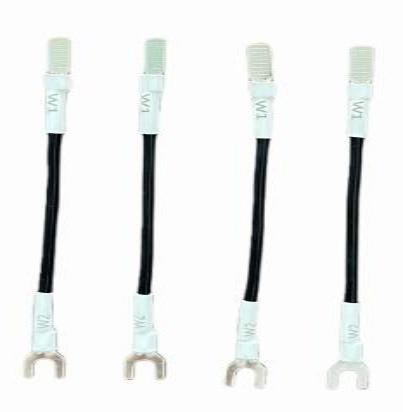

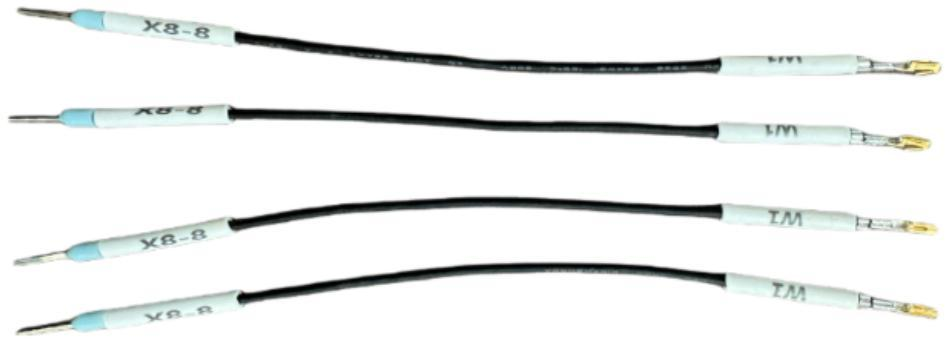

Wire cutting, single/double-end stripping, single/double-end crimping, single/double-end marker tube insertion & baking

Production Efficiency

1600–2300 cycles/hour (customized models subject to actual output)

Compressed Air Requirement

≥0.55 MPa

Power Supply

Single-phase AC220V, 50/60Hz, 32A

Overall Dimensions

L2350 × W800 × H1800 (mm) (excluding protrusions)

Major Component Brands

Taiwan TBI ball screws, Taiwan AirTAC cylinders, AirTAC linear guides, Japan NSK bearings, well-known brand servo motors
