Technical Parameters：
| Basic Parameters | |
|---|---|
| Wire Cross Section | 0.2-4 mm², customisable for larger sizes |
| Cut Length | 50mm-9999mm (0.1mm setting unit; shorter lengths customisable) |
| Stripping Length | 1mm-15mm (strip length customisable) |
| Crimping Force | 2T terminal crimper (customisable) |
| Crimping Stroke | 30mm (40mm stroke customisable) |
| Applicable Dies | Universal OTP dies (horizontal feed / vertical feed / pneumatic dies) |
| Inspection Functions | Air pressure detection / wire presence check / terminal presence check / crimped terminal presence check / waterproof plug presence check (pressure monitoring optional, vision system optional) |
| Control Method | Motion control card |

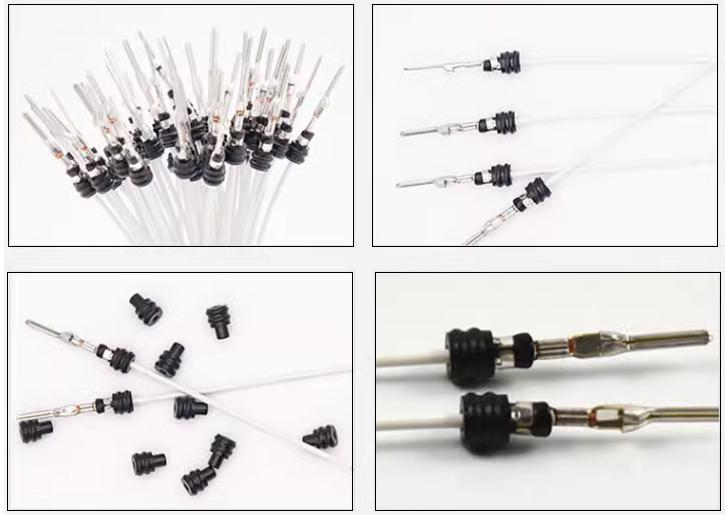

| Functions | Wire cutting, single (double)-end stripping, single-end waterproof plug loading, single-end crimping |
| Efficiency | 1100-1300 pcs/h (custom models subject to actual output) |
| Compressed Air | ≥0.55 MPa |
| Power Supply | Single-phase AC220V, 50/60Hz, 32A |
| Overall Dimensions | L1300 × W900 × H1800 mm (excluding protrusions) |
| Key Component Brands | Taiwan TBI lead screw, Taiwan AirTAC cylinder, AirTAC linear guide, Japan NSK bearing, Xinjie servo motor |
