Feature：
This fully automatic double-end crimping machine is specially designed for double-end terminal crimping. It adopts a professional XY modular structure to improve production efficiency and ensure stable product quality.
It supports wire cutting, stripping, double-end crimping, double-end full stripping, double-end half stripping, double-end twisting, or single-end crimping & twisting. All functions can be freely switched and controlled via a computer interface, making it easy to operate even for ordinary workers.
All core components are imported for long-lasting durability. The machine has a simple structure, which is easy to operate, maintain, and service.
Compatible with both horizontal and vertical OTP applicators.
Technical Parameters：
| Parameter | Specification |
|---|---|
| Model | HY22-AC1000-1 One-End Tinning & One-End Crimping Machine |
| Power Supply | AC220V, 50/60Hz, Single Phase |

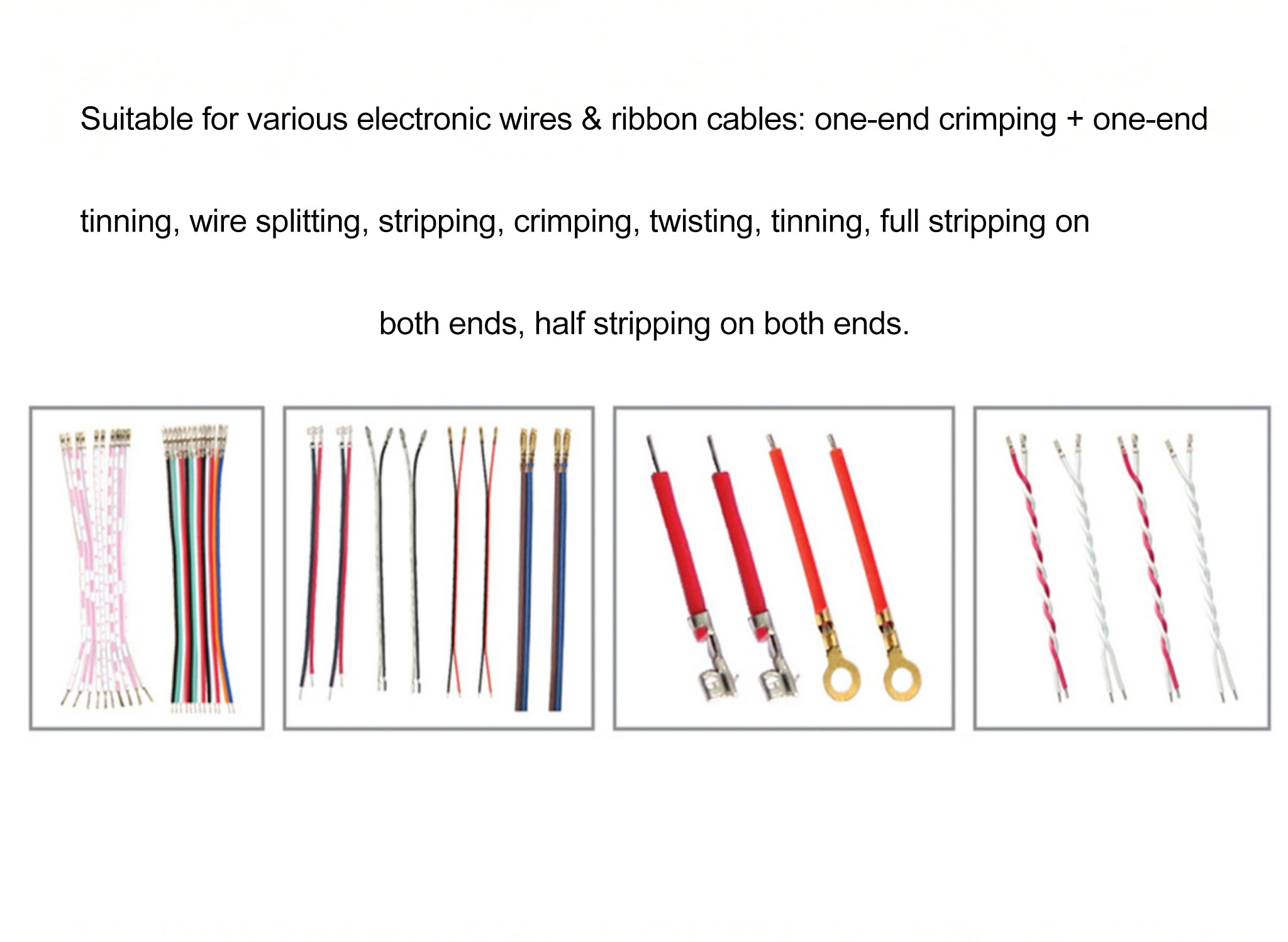

| Functions | Wire dividing, stripping, crimping, wire twisting, tinning, full stripping on both ends, half stripping on both ends. All functions are computer-controlled for easy, fast operation. |
| Processing Range | Single-core wire: 18AWG–32AWG; Ribbon cable: OD 0.55mm–OD 2.5mmSingle-core wire length: 12mm–800mm; Ribbon cable length: 40mm–800mm |
| Production Capacity | Single-core wire (100mm): 5,500 pcs/hRibbon cable (10-core, 100mm): 10,000 points/h |
| Stripping Accuracy | 0.01mm |
| Blade Position Accuracy | 0.01mm |
| Cutting Length | Standard 8mm–800mm (extendable) |
| Stripping Length | 0–10mm |
| Crimping Force | 2.0 tons |
| Air Pressure | 0.4–0.6 MPa |
| Inspection Functions | Missing wire detection, terminal presence detection, air pressure detection (pressure sensor optional) |
| Overall Dimensions | L1500 × W720 × H1500 mm (excluding protrusions) |
| Weight | Approx. 350 kg |
